Pole Barn Lean-To and Metal Building Lean-To Additions: The Complete Guide
A pole barn lean-to is one of the most practical and cost-effective ways to expand usable covered space on a rural property. Whether you are planning a new build or looking to expand a structure you already have, adding a lean-to to a pole barn or metal building can dramatically increase what your property can do without the price tag of a full new structure.
This guide covers everything you need to know about lean-to additions, from how they work and what they cost to design options, sizing, and the most popular uses.
What Is a Lean-To on a Pole Barn or Metal Building?

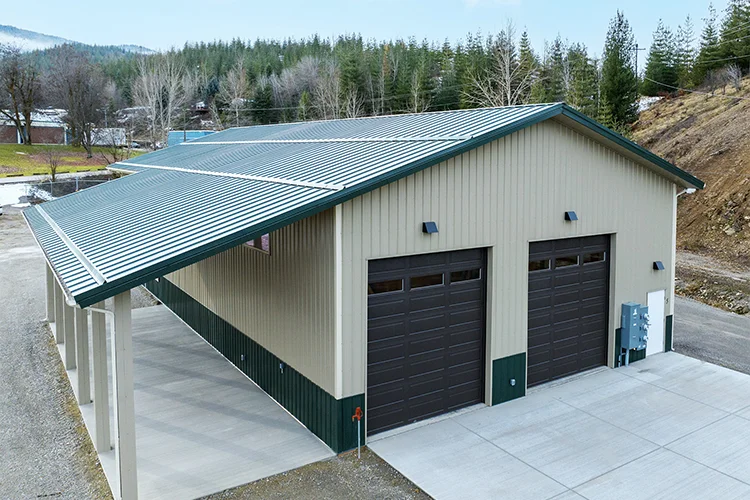

A lean-to is a single-slope roof structure that attaches to the sidewall of a main building and extends outward to create additional covered space. The roofline runs at a pitch that slopes away from the main building, which is where the name comes from.
On a pole barn or metal building, the lean-to shares the structural wall of the primary structure on one side and is supported by its own posts or columns on the outer edge. This makes lean-tos significantly more affordable than adding a full bay or building a separate structure, since they use the existing building as one full wall of support.
Lean-tos can be fully enclosed, partially open, or completely open depending on how they will be used. That flexibility is a big part of why they are so popular on everything from farm properties to contractor shops to residential hobby garages.
Why Add a Lean-To Instead of Building New?
When you need more covered space, you have a few options: build a separate structure, expand the main building during initial construction, or add a lean-to. For a lot of property owners, a lean-to hits the sweet spot between cost, speed, and practical value.
Cost Savings
Because a lean-to shares one full wall with the existing building and uses a simpler single-pitch roof design, it requires significantly less material and labor than a new freestanding structure of similar square footage. For many buyers, a lean-to addition can cost 30 to 50 percent less per square foot compared to building new.
Speed of Construction
Lean-tos can typically be framed and roofed faster than a full building addition. If you are working with a contractor like Steel Structures America, a lean-to can often be incorporated into a project timeline without dramatically extending the build schedule.
Flexibility
Lean-tos work on new builds and existing buildings. You can add one right from the start or retrofit one onto a building you put up years ago. This makes them a great option if your needs change over time.
Versatility of Use
Few additions serve as many different purposes as a lean-to. The same structure can shelter equipment, create a covered workspace, function as a livestock loafing area, serve as a porch, or provide parking for vehicles. That range of use cases means a lean-to almost always pays for itself quickly in practical value.
Common Uses for a Pole Barn Lean-To or Metal Building Lean-To
The way people use lean-to additions is nearly as varied as the properties they are built on. Here are some of the most common applications:
Equipment and Vehicle Storage
This is probably the most popular use for agricultural and rural properties. A lean-to on the side of an equipment barn gives you covered parking for tractors, implements, ATVs, trailers, or utility vehicles without requiring the main barn to be expanded. Equipment stays out of the weather, and you keep your main interior floor space clear.
Hay and Feed Storage
Many farmers add lean-tos specifically for hay or feed storage. The covered but partially open design works especially well here because it allows ventilation while protecting materials from rain and snow. Hay storage lean-tos often run the full length of a barn and are designed to be open on one or more sides.
Livestock Loafing Areas
A lean-to attached to a livestock barn gives animals a shaded, sheltered area to move in and out of freely. Cattle, horses, and goats all benefit from access to a covered loafing space that is adjacent to their main housing area. These lean-tos are typically open on one or two sides and built wide enough for animals to move comfortably.
Covered Workspace or Wash Bay
For contractor shops and hobby garages, a lean-to creates a covered outdoor workspace. You can wash vehicles or equipment, do maintenance work, run power tools, or store materials under cover without taking up space inside the main building. These lean-tos are often partially enclosed with one or two open sides.
Carport or RV Cover
A lean-to that runs along the side of a garage or metal building can function as a carport or RV shelter. Depending on the height clearance and width, it can protect everything from standard passenger vehicles to full-size motorhomes or fifth wheels.

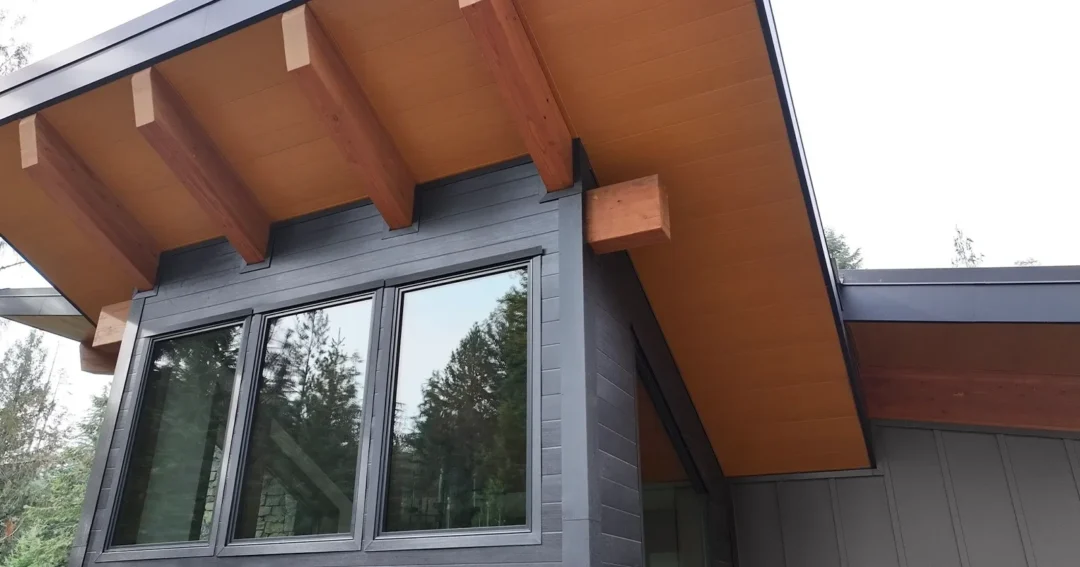

Covered Porch or Outdoor Living Space
Residential pole barns and shop-homes are increasingly incorporating lean-to porches on the front or side of the building. A well-designed lean-to porch adds character to the exterior and creates a comfortable outdoor living or entertaining space that connects to the building naturally. For more on this specific use, check out our article on lean-to porch design ideas.
Storage for Lumber, Firewood, or Supplies
Open or partially enclosed lean-tos are great for bulk material storage. Firewood stays dry, lumber stays protected from moisture, and supplies stay organized and accessible without cluttering up the main building interior.
Pole Barn with Lean-Tos on Both Sides

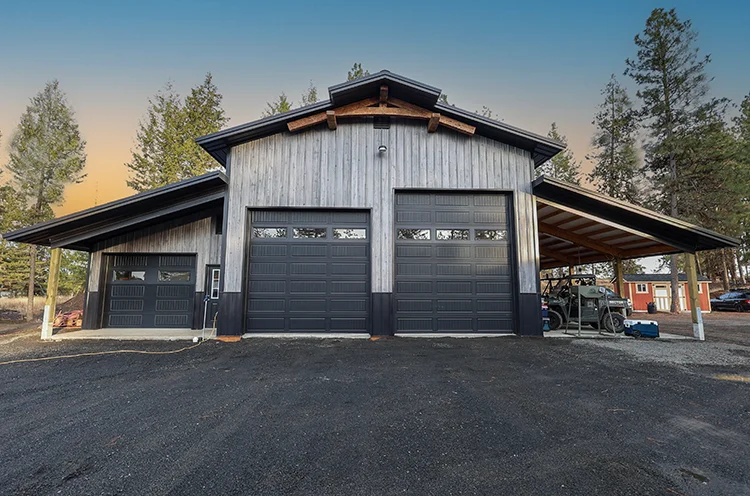

One popular configuration is the pole barn with lean-to on both sides, sometimes called a monitor barn or a center-aisle design. In this layout, lean-tos run along both sidewalls of the main structure, which creates a distinctive three-part roofline and significantly expands the total footprint of the building.
This approach is especially common in agricultural settings where the main barn is used for one purpose (livestock housing, for example) and the lean-tos serve complementary functions (hay storage on one side, equipment parking on the other). The symmetrical lean-to layout also gives a building a strong, traditional look that a lot of buyers find appealing.
From a structural standpoint, lean-tos on both sides distribute loads evenly and can actually add stability to the main building. If you are planning a new build and have a variety of storage needs, designing both lean-tos in from the start is usually more cost-effective than adding them later.
Lean-To Sizes: Finding the Right Width for Your Needs
Lean-to width is the most important dimension to nail down before you build. The width you choose determines what the lean-to can actually fit inside, how the roofline looks, and what the addition will cost. Here is a general sizing reference:
| Lean-To Width | Common Use | Works Well With |
| 8 ft | Covered walkway, small porch | Any building size |
| 10 ft | Single-vehicle shelter, porch | 30×40 and larger |
| 12 ft | Covered equipment parking, RV overhang | 40×60 and larger |
| 14 to 16 ft | Full vehicle storage, livestock shelter | 50×80 and larger |
| 20 ft+ | Large equipment, semi trucks, hay storage | Commercial or ag builds |
Lean-to length typically matches the full length of the wall it attaches to, though partial-length lean-tos are also possible. For more detailed sizing guidance and overall size guide, see this article on pole barn sizes, and this article on lean-to sizes and costs.
Adding a Lean-To to a New Build vs. an Existing Building
Designing a Lean-To Into a New Build
If you are planning a new pole barn or metal building and you know you want a lean-to, the best move is to design it into the original building plans from the start. This allows your builder to engineer the main structure with the lean-to attachment points built in, which typically results in a stronger connection and a cleaner finished look.
Building the lean-to at the same time as the main structure also tends to be more cost-efficient than coming back later. Labor is already on site, material orders can be consolidated, and the permit can cover the full project footprint in one application.
Retrofitting a Lean-To onto an Existing Building
If you have an existing pole barn or metal building and want to add a lean-to, it is absolutely possible in most cases. The process involves attaching a ledger board or connection hardware to the existing sidewall and setting new posts to support the outer edge of the lean-to roof.
The key considerations when retrofitting are the condition of the existing sidewall, whether the foundation can accommodate new post placements, and how the new roofline will drain away from the existing structure. A properly designed retrofit lean-to will perform just as well as one built from scratch.
Read more about adding a lean-to to an existing building in this guide.
Open, Partially Enclosed, or Fully Enclosed: Which Is Right for You?
One of the first design decisions you will face when planning a lean-to is how open or enclosed you want it to be. There is no single right answer, and the best choice depends on how you plan to use the space.
Open Lean-Tos
Open lean-tos have no walls on the outer edge or sides. They provide shade and rain coverage while allowing maximum airflow. These work best for hay storage, livestock loafing areas, covered equipment parking, and carport applications where you want easy drive-in and drive-out access.
Partially Enclosed Lean-Tos
A partially enclosed lean-to might have knee walls (short walls along the bottom of the open sides), a back wall, or partial siding on one or two sides. This design offers more weather protection than a fully open structure while still allowing good airflow and easy access. They work well for workshop and wash bay uses.
Fully Enclosed Lean-Tos
A fully enclosed lean-to is essentially an addition to the main building. It has walls on all sides and typically a door or overhead door for access. This design maximizes weather protection and security, making it ideal for storage of valuable equipment, tools, or materials. Enclosed lean-tos can also be insulated and conditioned if needed.
Roofing and Siding on Lean-To Additions
For consistency and durability, most lean-to additions use the same metal roofing and siding panels as the main building. At Steel Structures America, we work with Metal America for our panel supply, which means your lean-to will match the main structure in color and profile.

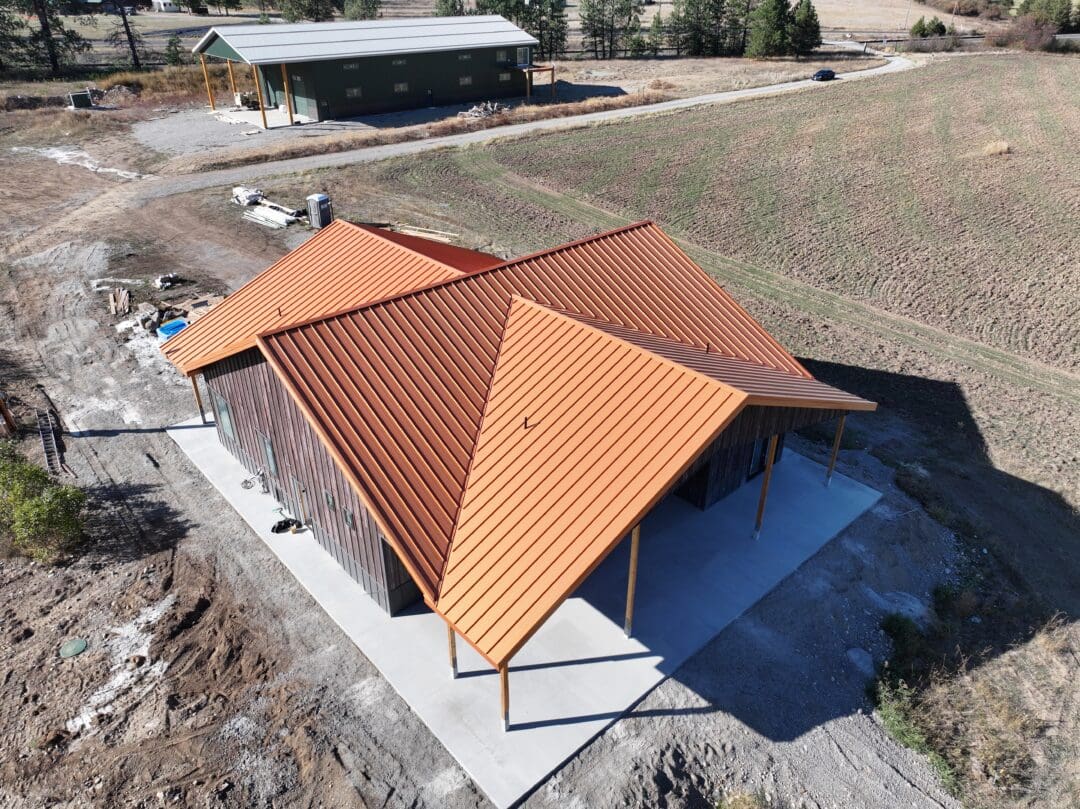

The single-pitch roofline on a lean-to is actually one of the more rain-friendly roof designs out there. Water sheds away from the main building in a single direction, which makes flashing and drainage simpler to manage compared to a full gable addition.
Trim details, fascia, and any soffit work on the lean-to should also match the main building to create a cohesive finished look. If you are adding a porch lean-to to a residential shop-home or barndominium, details like column wraps, exposed beam ceilings, and decorative trim can take the addition from functional to genuinely impressive.
Permits and Engineering for Lean-To Additions
Most lean-to additions require a building permit, and the requirements vary depending on your county and state. In some rural jurisdictions, small agricultural lean-tos may be exempt from permitting requirements. In other areas, any addition to an existing structure will require a permit and potentially an engineer’s stamp.
Here are the general steps most buyers go through:
- Contact your county building department to find out if a permit is required for your specific project.
- Determine if your lean-to needs engineered drawings. Enclosed lean-tos and larger additions typically do. Open lean-tos on agricultural properties sometimes do not.
- Submit permit drawings that include the lean-to dimensions, connection method to the existing building, post footing sizes, and roofing details.
- Schedule any required inspections during and after construction.
Working with a contractor like Steel Structures America means you have someone with experience navigating permitting in Idaho, Washington, Oregon, Colorado, Montana, and surrounding states. We can help you understand what is required in your area before you start designing. Get a complete overview of the permits required for pole barns here.
What Does a Lean-To Cost? A General Overview
Lean-to pricing varies based on several factors: the width and length of the addition, whether it is open or enclosed, the roofing and siding materials, the type of foundation, and local labor rates. As a general ballpark:
- A basic open lean-to on an existing pole barn might start in the range of $8 to $15 per square foot for materials and labor on smaller projects.
- A partially enclosed lean-to with siding and a concrete floor typically runs $15 to $25 per square foot.
- A fully enclosed lean-to with overhead doors, insulation, and a finished interior can run $25 to $40 per square foot or more.
These are rough ranges. Your actual cost will depend heavily on your specific site, building dimensions, and what you want included in the addition.
