#13893 – 34′ x 30′ x 14′ Commercial Addition with Standing Seam Roof and Exterior Re-Metal in Hayden, ID
#13893 – 34′ x 30′ x 14′ Commercial Addition with Standing Seam Roof and Exterior Re-Metal in Hayden, ID
Steel Structures America built this 34′ x 30′ x 14′ commercial post-frame addition in Hayden, ID for a retail marketplace on Government Way. The owner needed more floor space and a fresh exterior on the existing building at the same time. As a result, the crew framed the addition and wrapped the original building in matching steel, all in one project.

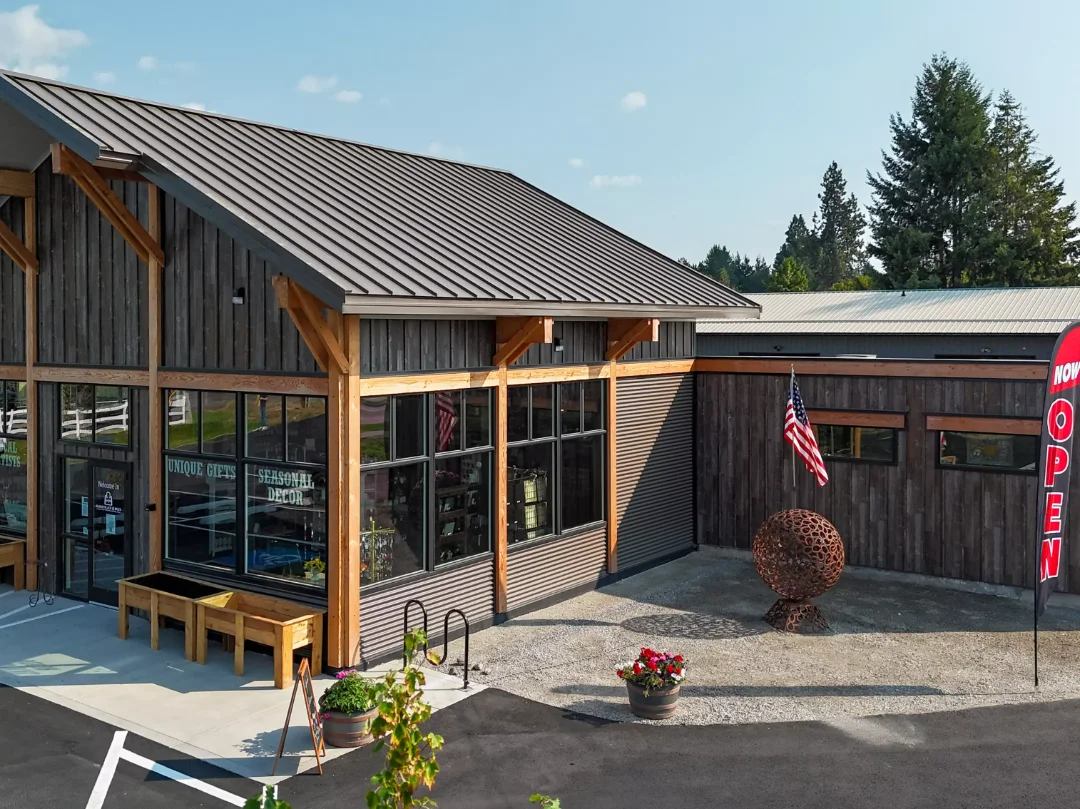

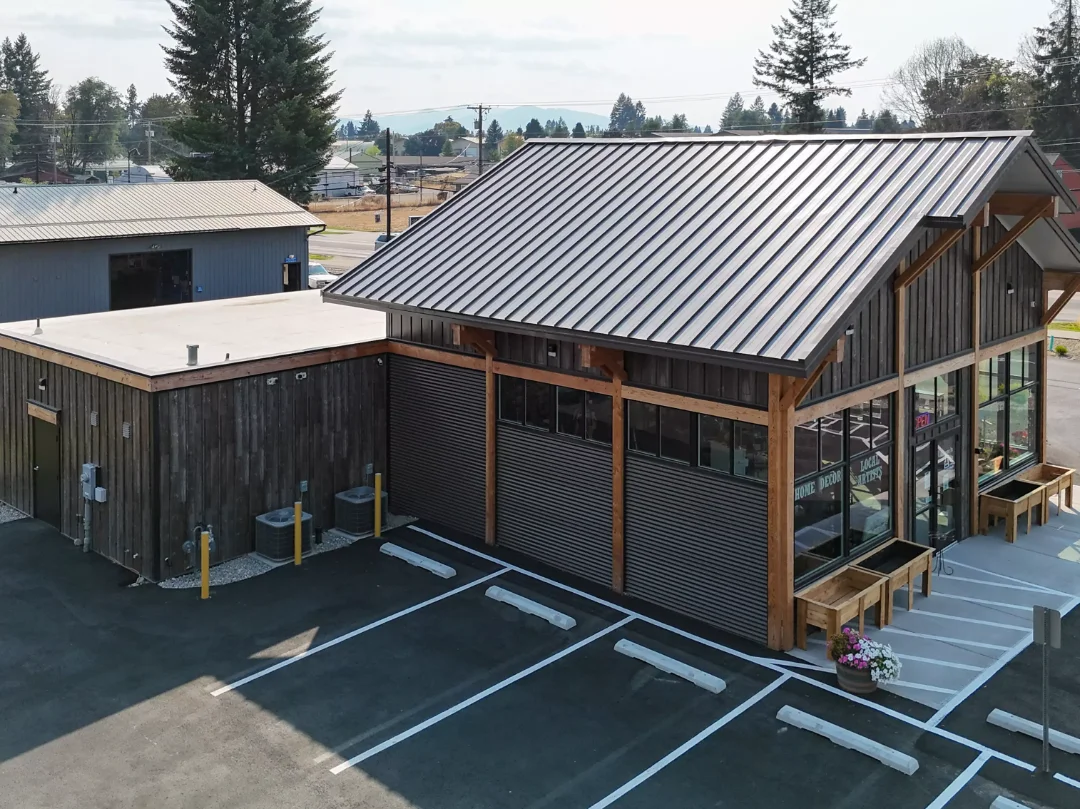

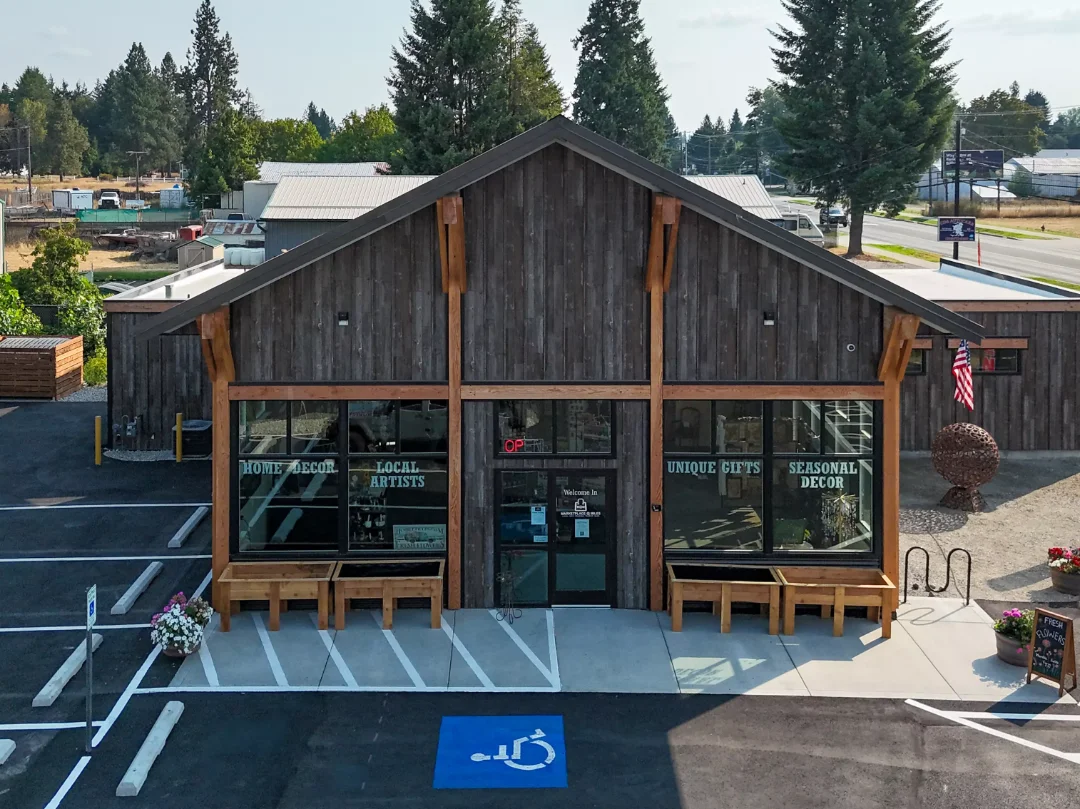

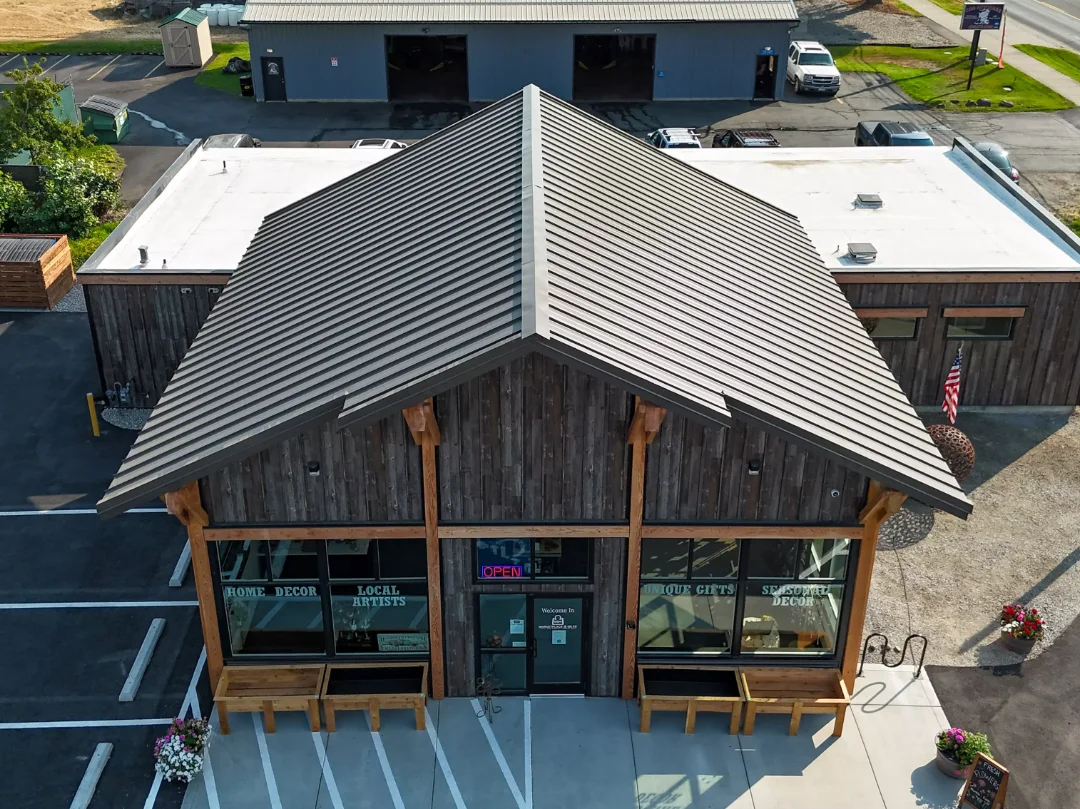

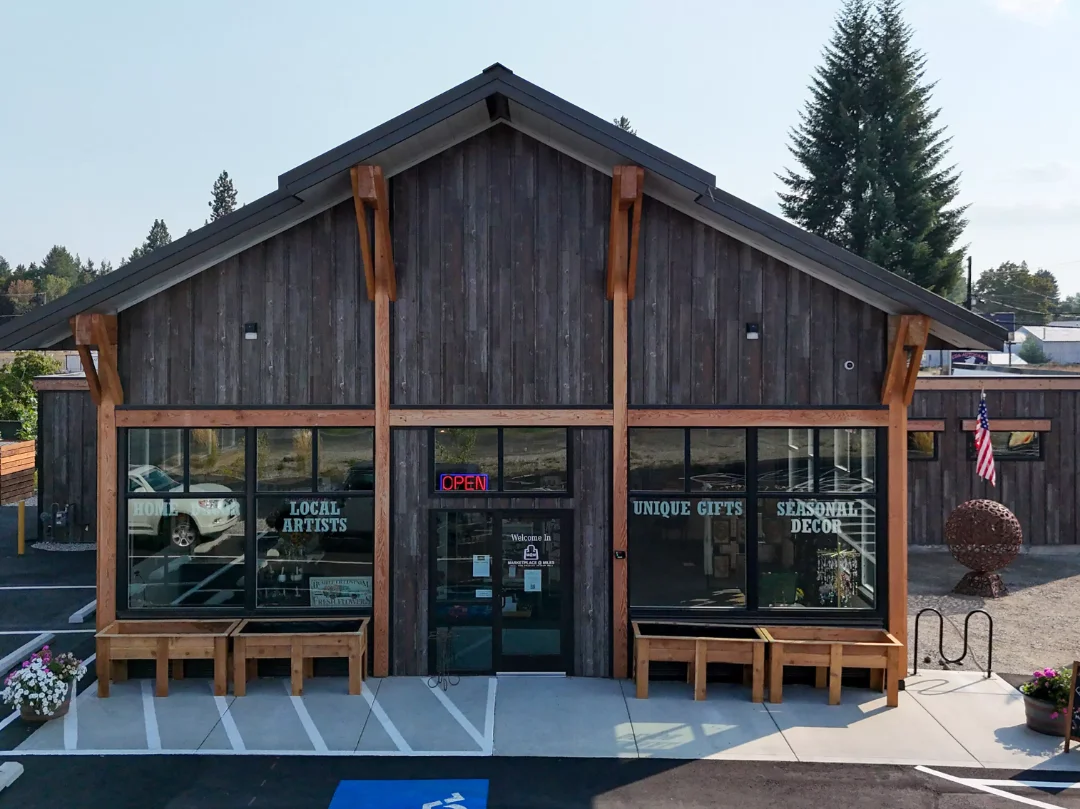

The addition carries a Burnished Slate standing seam roof over Old Town Gray corrugated walls, with Polar White soffits under 3′ overhangs. In addition, an extended front gable with knee braces, corbels, and exposed wood posts gives the entry a timber look. Throughout, matching Old Town Gray siding, a 40′ canopy, and a wood belly band tie the two buildings together.
Project Features
| Dimensions | 34′ x 30′ x 14′ addition at a 6:12 roof pitch, with 3′ overhangs, fascia, and vented soffits on the entire building |
| Siding | 26-gauge corrugated steel in Old Town Gray over 1/2″ plywood and 2×6 vertical framing, with Old Town Gray corners and Burnished Slate door and window trim |
| Roofing | 26-gauge SL-15 standing seam steel roof in Burnished Slate over 5/8″ plywood, with Burnished Slate roof corners and fascia and Polar White soffit |

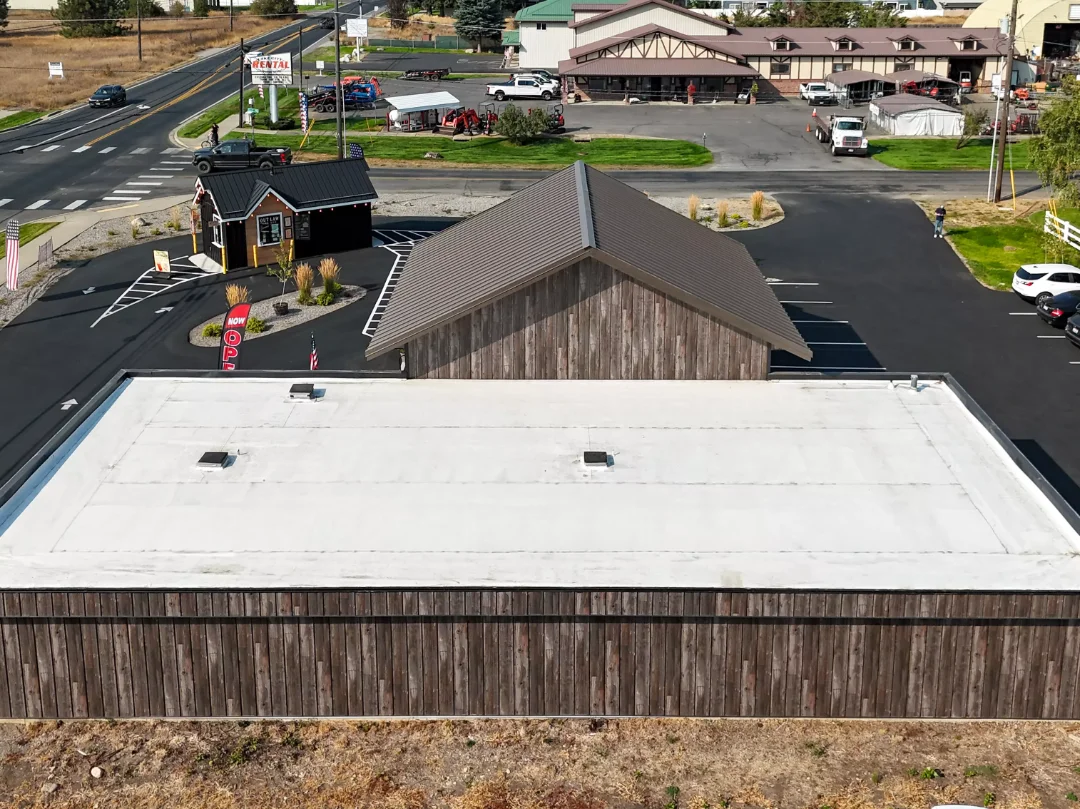

| Exterior Re-Metal | About 2,184 square feet of matching corrugated wall steel on the existing building, including a 40′ canopy and a 182′ wood belly band |
| Windows | Windows set per the architectural plan, with the front truss engineered around a window opening |
| Concrete | 4″ fiber-reinforced slab with an R-10 perimeter frost barrier |
| Engineering | Bottom-loaded trusses rated to carry insulation and drywall, engineered for a 50 pound snow load, with a full structural engineering set by a licensed Idaho engineer |
| Additional Features | Extended front gable with knee braces, corbels, exposed wood posts, and 8×8 timber-look posts and headers |
Posts were set on Perma-Columns®, which keep all wood above grade and extend the life of the building.
Thinking about adding onto your commercial building or giving it a new steel exterior? Contact us and Steel Structures America will plan an addition or re-metal for your property in WA, ID, MT, WY, OR, and CO.
