#14548 – 40′ x 99′ x 20′ Commercial Building with Storefront and Loft in Coeur d’Alene, ID
#14548 – 40′ x 99′ x 20′ Commercial Building with Storefront and Loft in Coeur d’Alene, ID
Steel Structures America built this 40′ x 99′ x 20′ commercial post-frame building in Coeur d’Alene, ID. The owner needed retail space up front and working space in back. The front section runs at a 15′ eave height with a full storefront window package. Behind it, the 20′ rear section holds a 40′ x 50′ commercial loft rated for an 80 pound floor load.

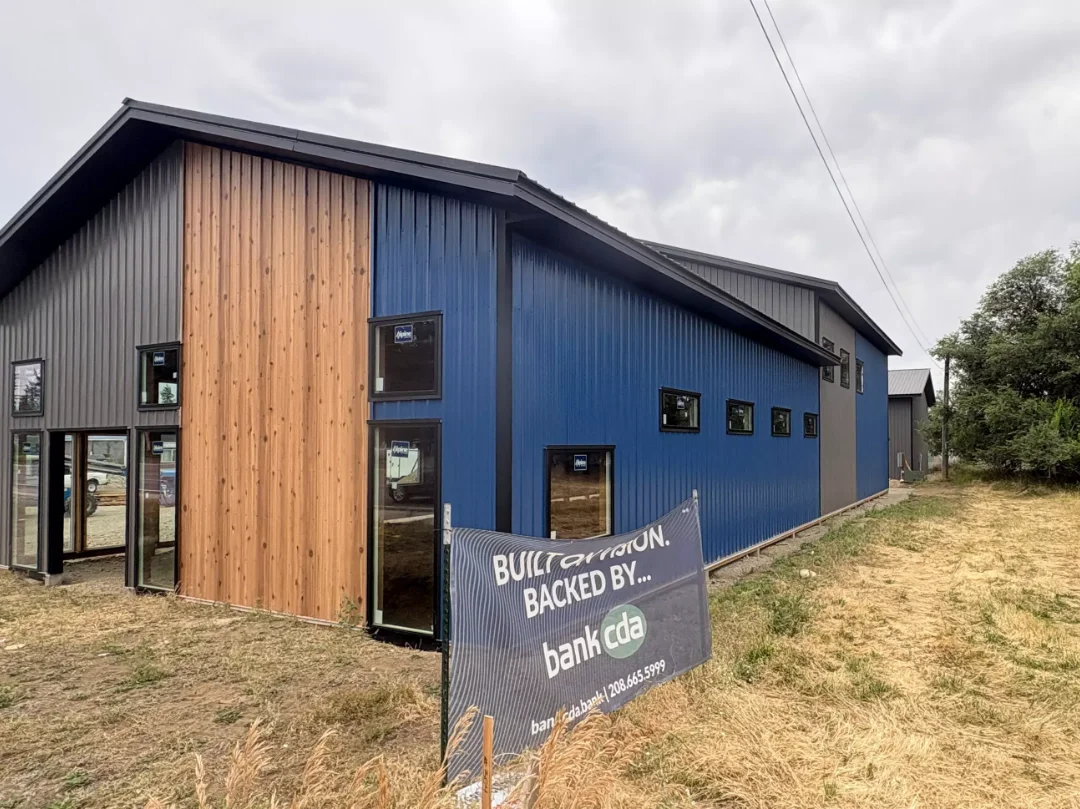

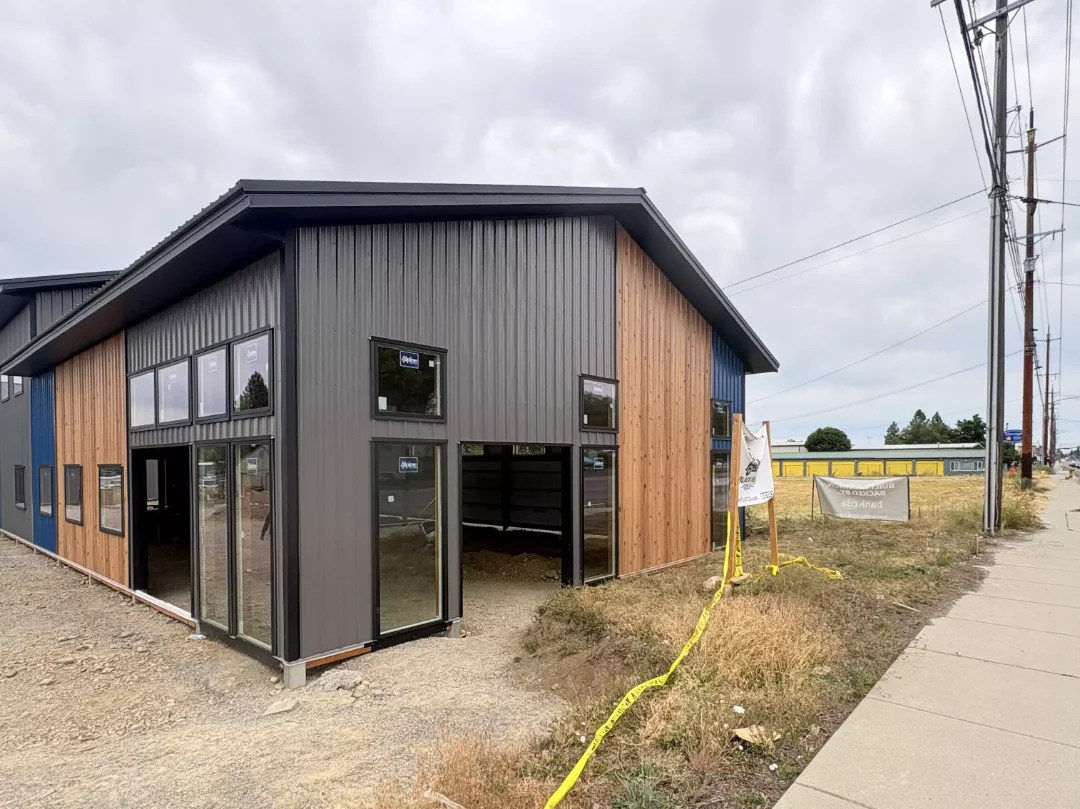

Outside, Gallery Blue and Charcoal Gray steel siding pair with Smooth Cedar wood-look panels for a modern commercial front. In addition, a 10′ x 6′ covered entry porch with a steel ceiling shelters the double entry doors. ULG Black roof, trim, fascia, and soffit tie the whole exterior together.
Project Features
| Dimensions | 40′ x 99′ at a 4:12 roof pitch, with a 20′ eave height over the rear 40′ x 50′ section and a 15′ eave height over the front section, plus 2′ overhangs with vented soffits |
| Loft | 40′ x 50′ commercial loft rated for an 80 pound floor load, with a 3.5′ x 10′ straight-run stair |
| Siding | 29-gauge steel in Gallery Blue and Charcoal Gray with Smooth Cedar wood-look accent panels, over house wrap. Door and window trim in ULG Black |
| Roofing | 29-gauge steel roof in ULG Black over 7/16″ OSB, with ULG Black fascia and soffit |
| Overhead Doors | Two insulated 10′ x 8′ overhead doors and one 8′ x 8′ glass overhead door |
| Walk-In Doors | Three 3′ x 6’8″ metal walk-in doors and a 6′ x 6’8″ double entry door |
| Windows | Storefront glass package across the front, plus fixed double-pane vinyl windows around the building |
| Concrete | 40′ x 99′ slab poured 5″ thick with fibermesh, a smooth finish, and an R-10 perimeter frost barrier, plus a 6′ x 10′ porch pad |
| Engineering | Bottom-loaded trusses with a 2×6 framed ceiling, commercial girts, and a 50 pound roof snow load |
| Additional Features | 10′ x 6′ covered entry porch with a steel ceiling |
Posts were set on Perma-Columns®, which keep all wood above grade and extend the life of the building.
Planning a shop, storefront, or office building for your business? Contact us and Steel Structures America will design a commercial post-frame building for your site in WA, ID, MT, WY, OR, and CO.
