#14758 – 24′ x 36′ x 16′ Shop with Cupola and Two Lean-Tos in Kennewick, WA
#14758 – 24′ x 36′ x 16′ Shop with Cupola and Two Lean-Tos in Kennewick, WA

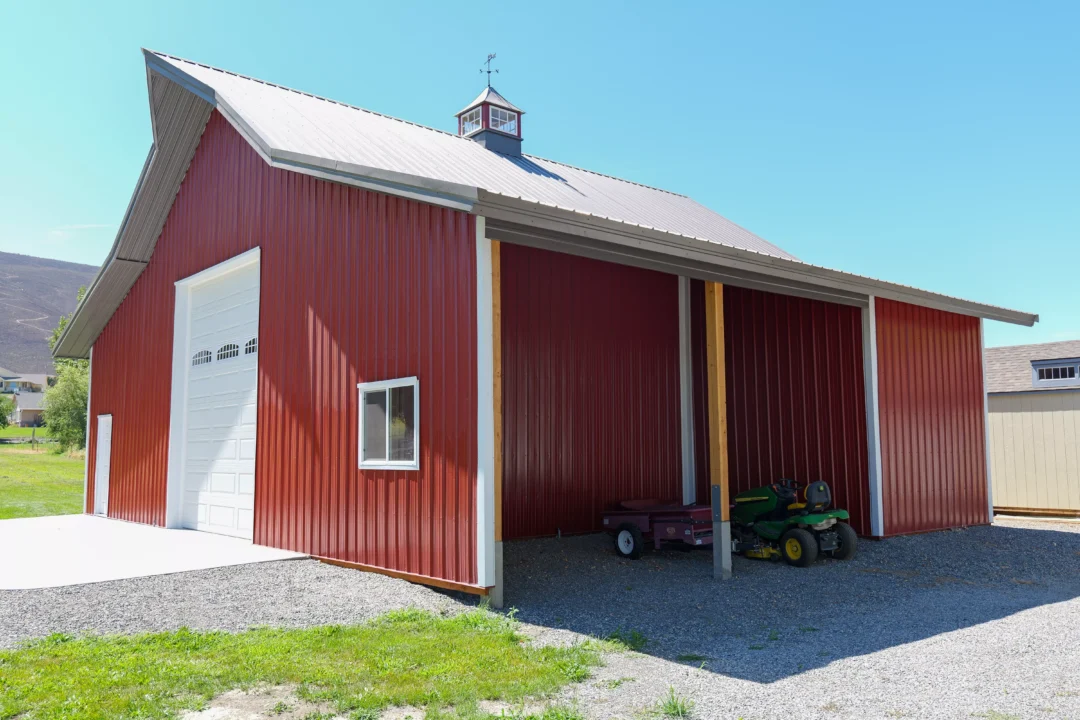

Steel Structures America built this post-frame shop in Kennewick, WA, for a customer who wanted room to grow. Since the property called for both covered storage and open equipment access, the design includes two lean-tos. The main bay measures 24 feet by 36 feet with a 16-foot eave and an 8:12 roof pitch. Both lean-tos flank the main bay, adding 12 feet of depth along the building’s length. Their lower 4:12 pitch steps the roofline down on both sides of the main gable.

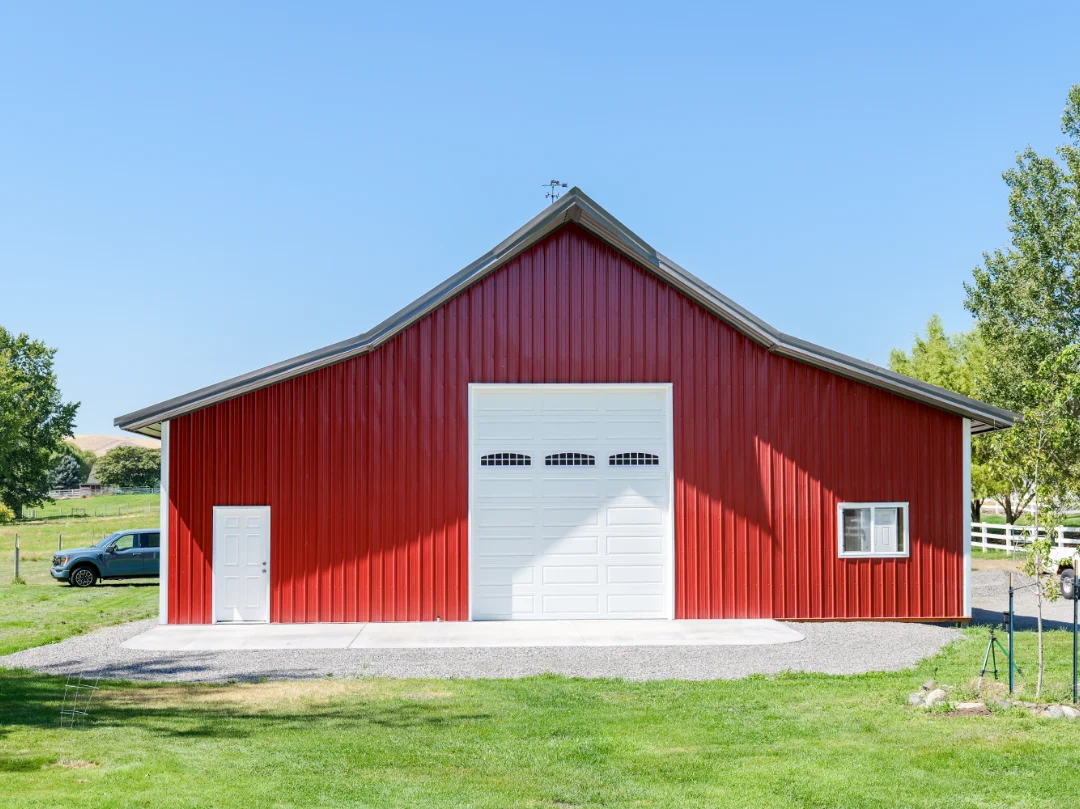

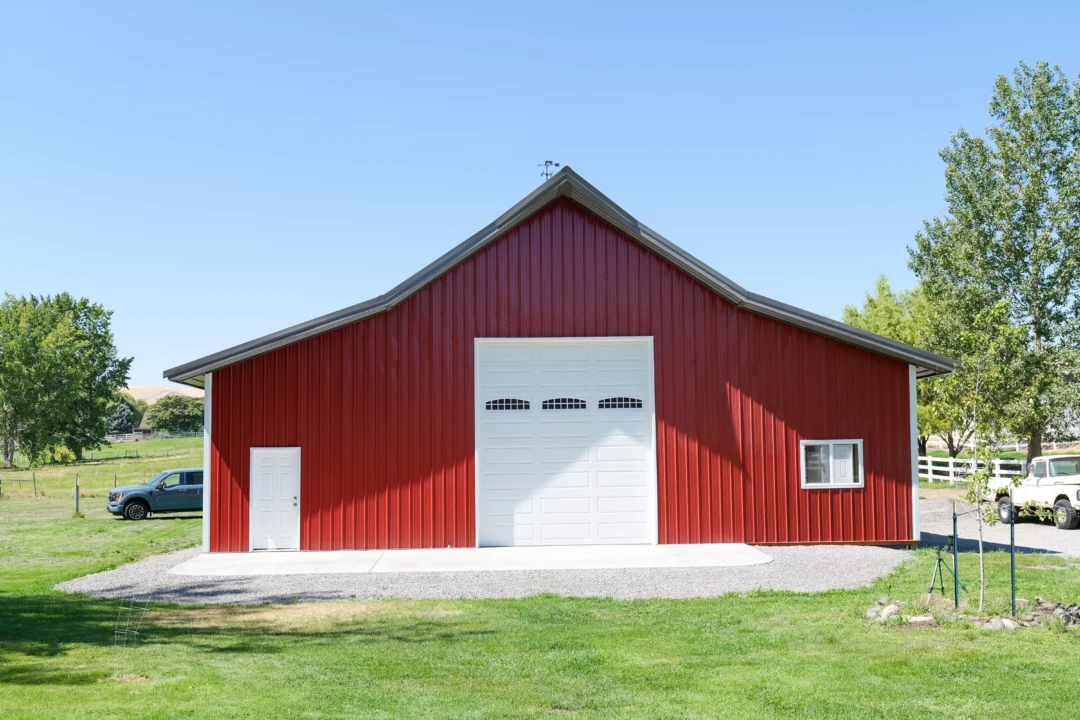

As a result, the shop reads lower and wider than its footprint suggests. Steel Structures America finished the exterior in Rural Red panels with Arctic White trim for contrast. The crew topped the ridge with a 36-inch cupola. Plus, an 8-foot bird’s beak and a 36-linear-foot glulam beam add character to the roofline. Overall, the layout balances a fully enclosed workspace with open bays for equipment that needs quick access.
Project Features
| Specification | Details |
|---|---|
| Dimensions | 24′ x 36′ x 16′ main building at an 8:12 roof pitch, plus a 12′ x 48′ enclosed lean-to and a 12′ x 24′ open lean-to at a 4:12 pitch |
| Siding | Rural Red 26-gauge Tuff Rib steel panels with Arctic White corner trim |
| Roofing | Charcoal 26-gauge Tuff Rib steel panels with charcoal trim, ridgecap, soffit, and fascia |

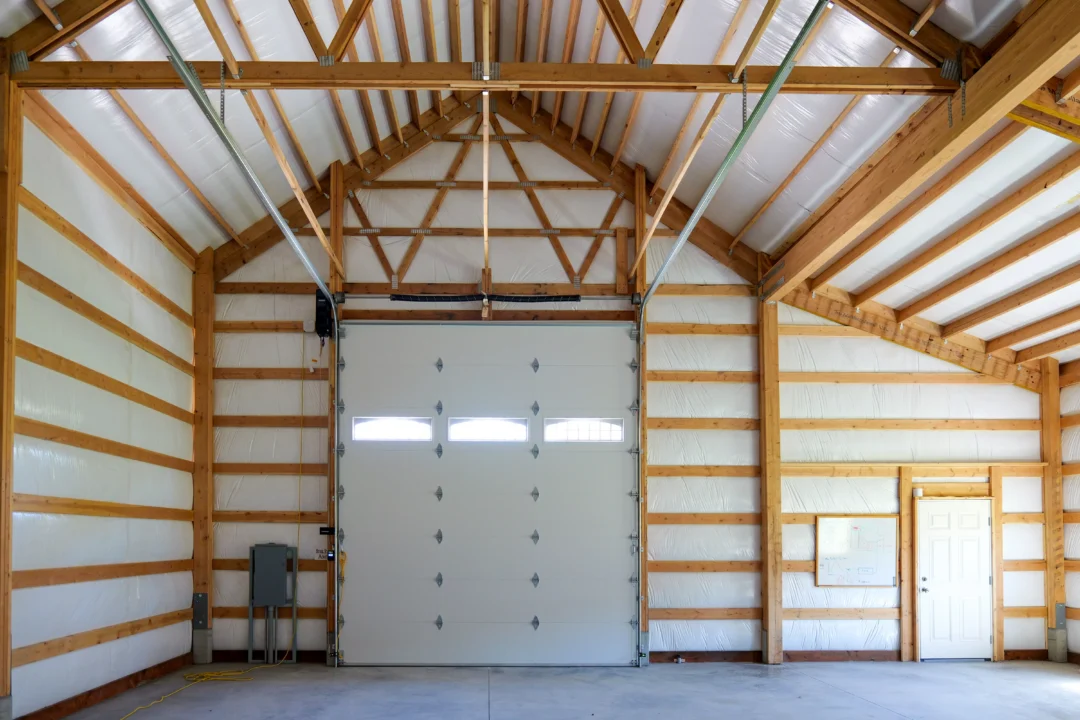

| Overhead Doors | (1) 12′ x 14′ white overhead door with windows and an electric jackshaft opener, plus (1) 9′ x 9′ white overhead door with a high-lift track |

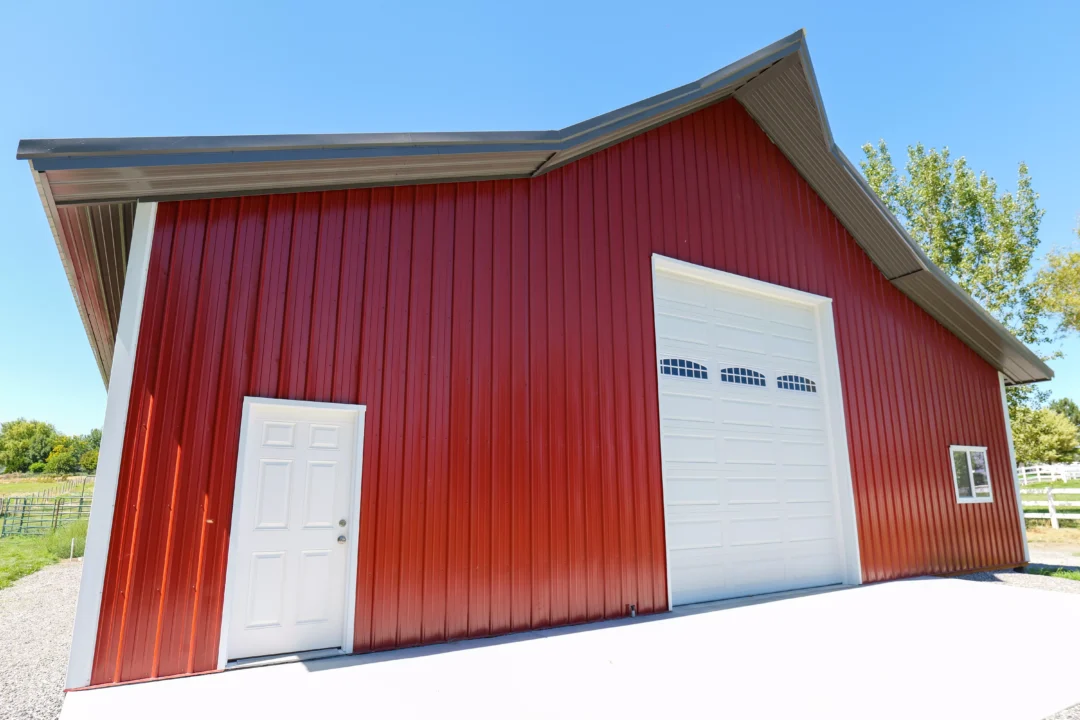

| Walk-In Doors | (2) 3′ x 6’8″ white weather-guard steel walk-in doors |

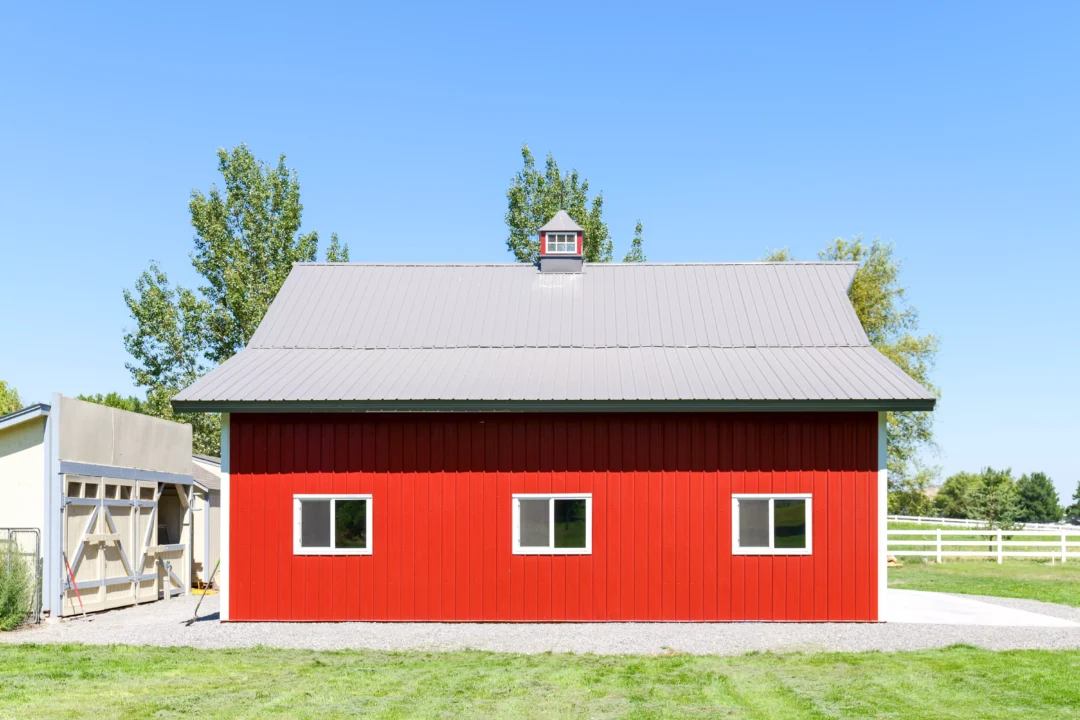

| Windows | (4) 4′ x 3′ white vinyl double-pane windows |
| Concrete | 1,440-square-foot slab, four inches thick, reinforced with fibermesh |

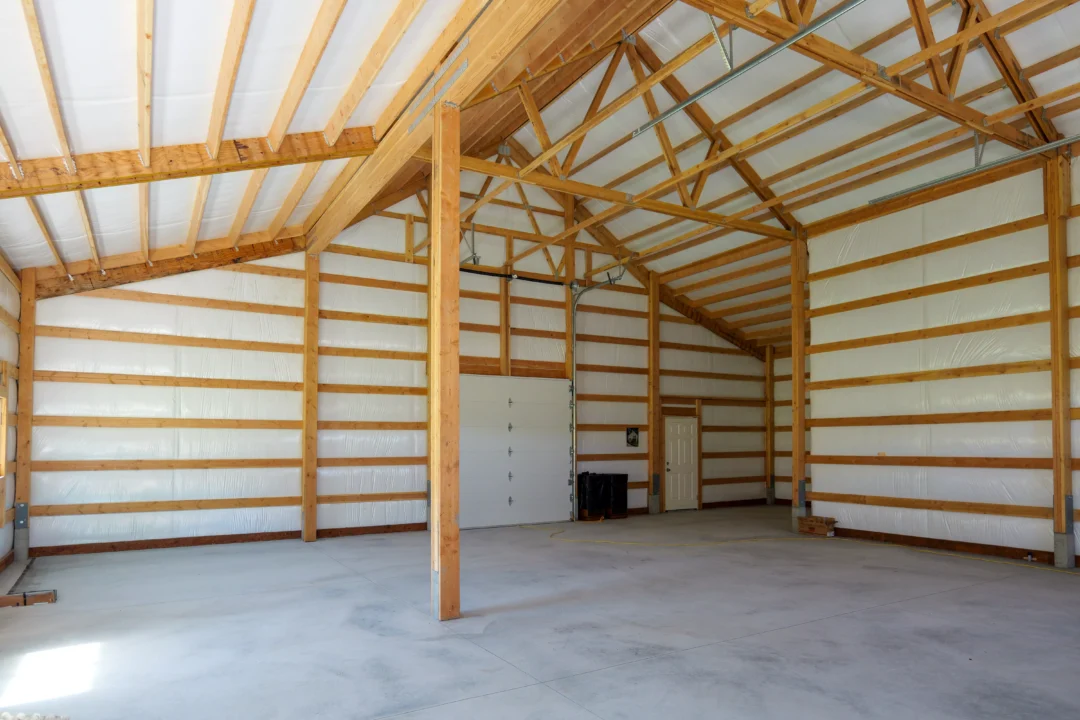

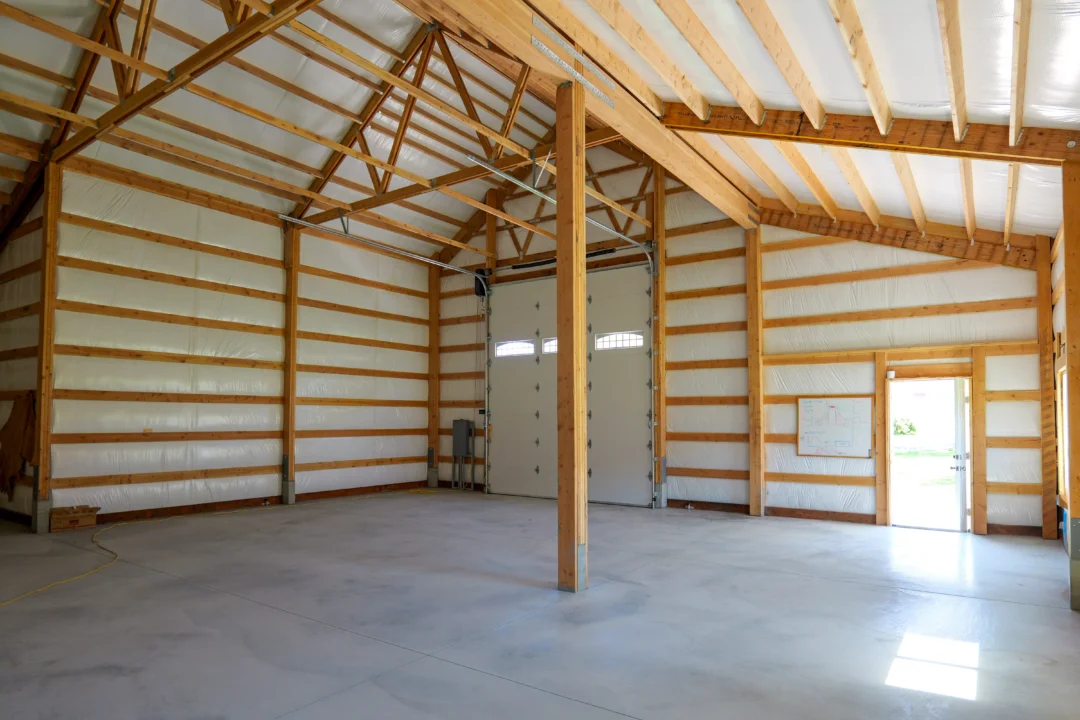

| Engineering | Engineered for Exposure C wind and site-specific snow loads, with 8×8 solid-sawn corner posts |
| Additional Features | 36-inch charcoal cupola, an 8-foot bird’s beak roof detail, and a 36-linear-foot glulam beam |
Posts were set on Perma-Columns®, which keep all wood above grade and extend the life of the building.
Beyond that, if you’re picturing your own post-frame shop, Contact us and Steel Structures America will help you plan a build that fits your property in WA, ID, MT, WY, OR, and CO.
