This 40′ x 48′ x 16′ post-frame shop in Ellensburg, WA delivers 1,920 square feet of working space. The site sits on a rural property in Kittitas County. Steel Structures America built the structure to handle the specific demands of the high desert climate. That means engineering for heavy snow loads and open-terrain wind exposure. The layout prioritizes equipment access and long-term use.
Design & Layout
The building is a standard gable with a 4:12 roof pitch and 12-foot truss spacing. Steel Structures America framed out both gable ends. The front gable features a 16-foot extended overhang and a 6×6 decorative timber truss. Together, these details give the entry elevation a finished, custom character that goes well beyond a standard shop.

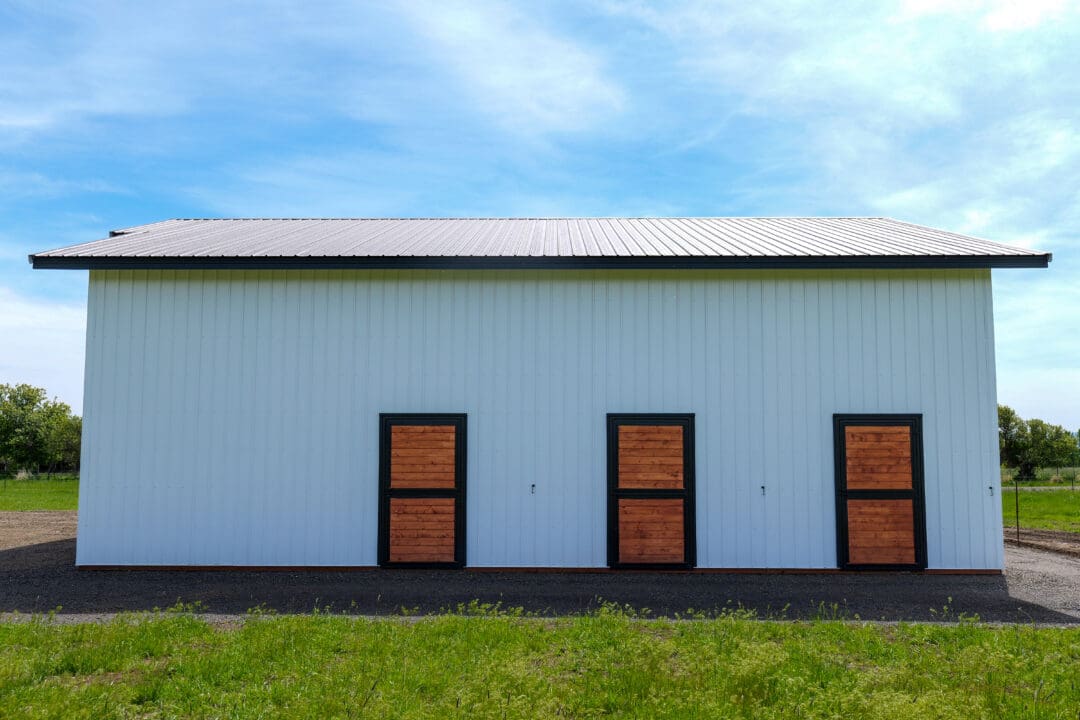

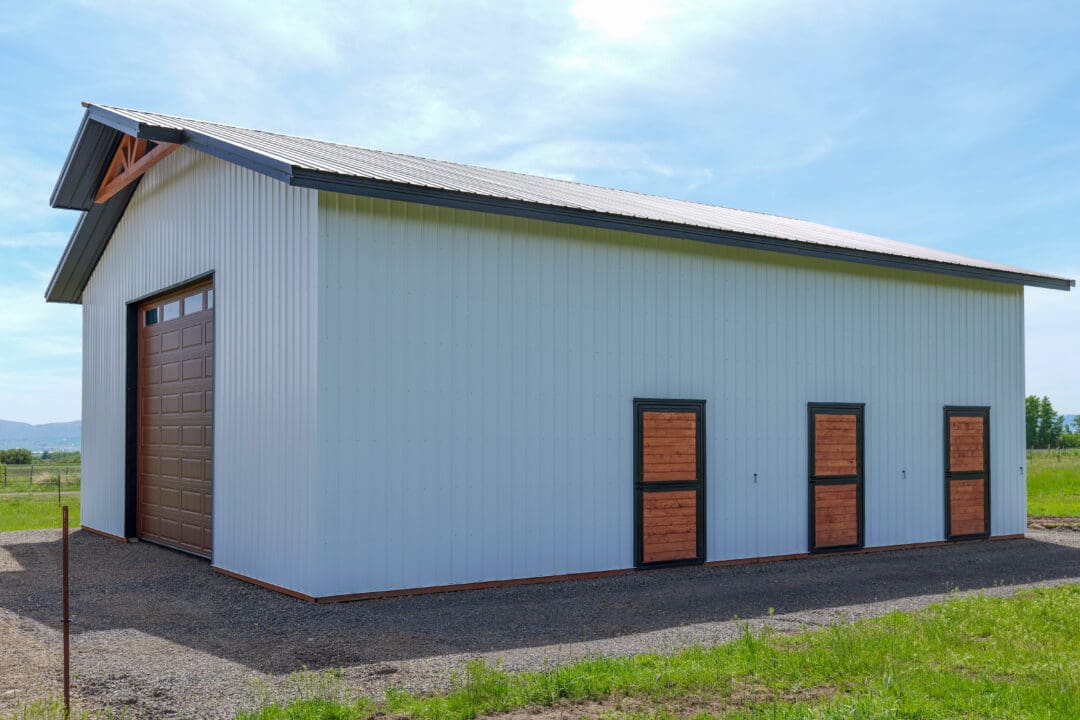

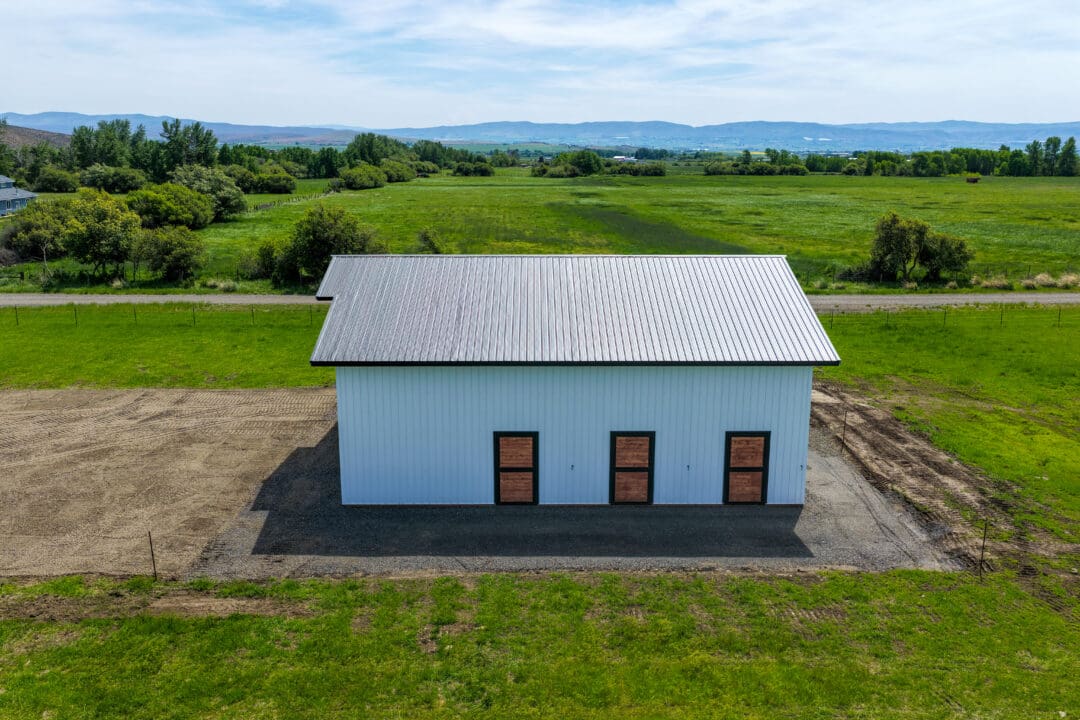

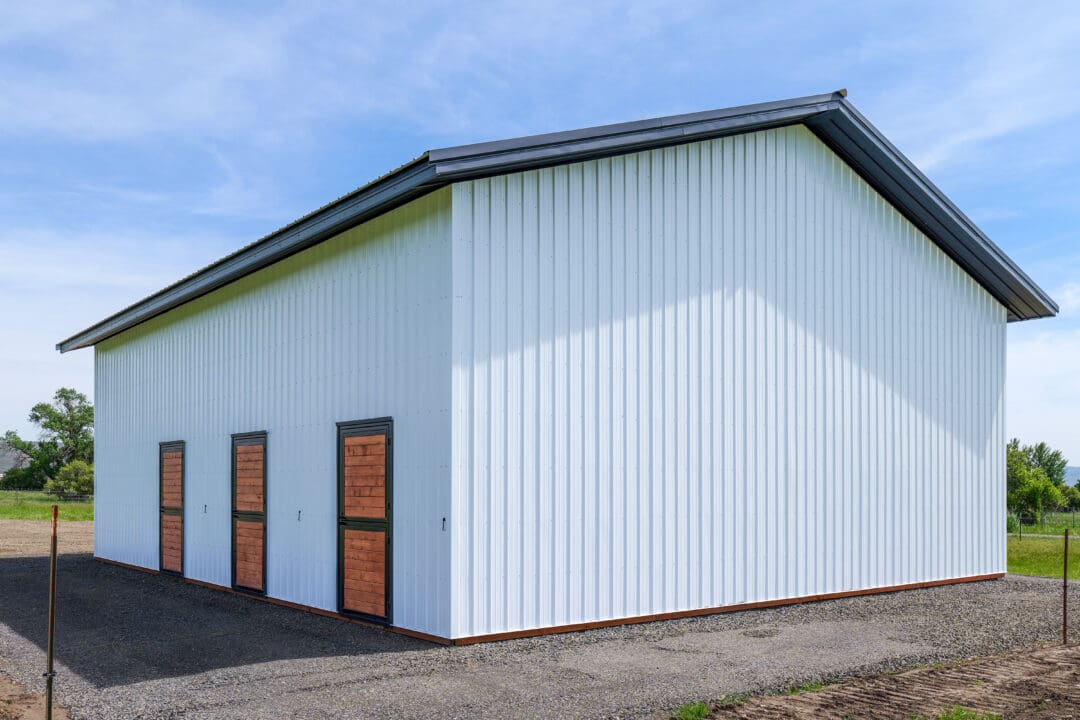

Three Dutch doors run along the sidewall, each positioned within a 12-foot bay. This layout gives the owner direct, independent access to every section of the building. Additionally, a 16’x14′ overhead door on the gable end handles large vehicle and equipment entry.
Exterior & Features
Steel Structures America used Arctic White for the body panels and outside corners. ULG Black covers the roof, trim, fascia, soffit, and door and window trim. The high-contrast finish reads cleanly against the open landscape surrounding Ellensburg.

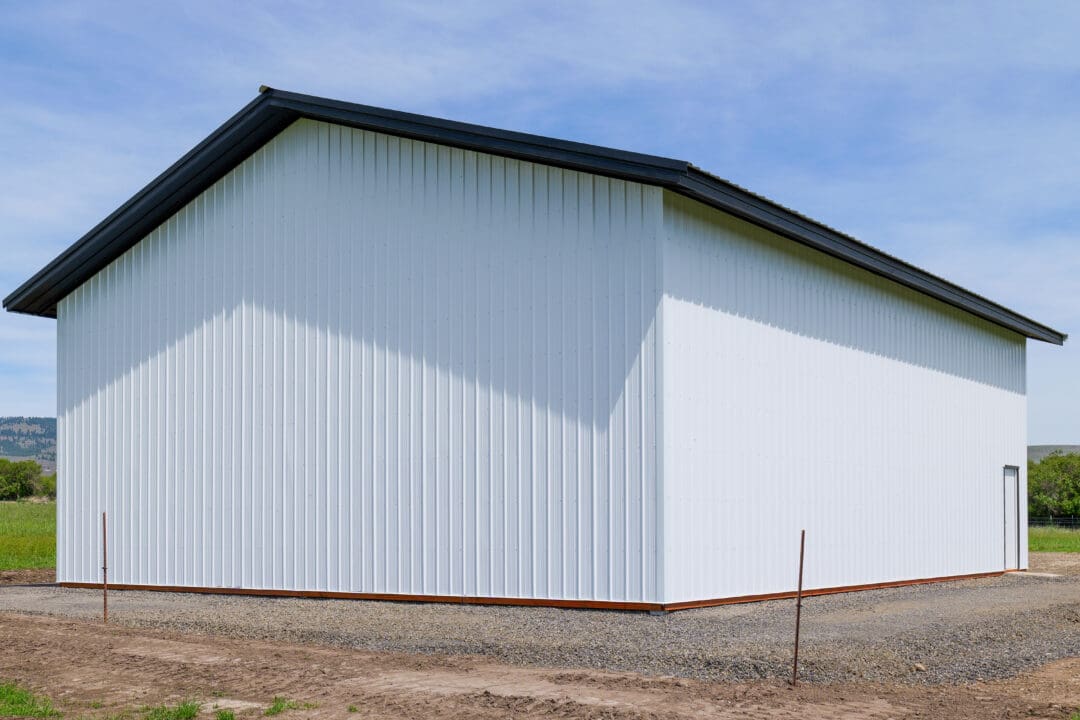

Both eaves include a 24-inch fully enclosed, raked-style soffit. The soffit and fascia run in ULG Black throughout, tying the roofline to the trim detail on all four sides.

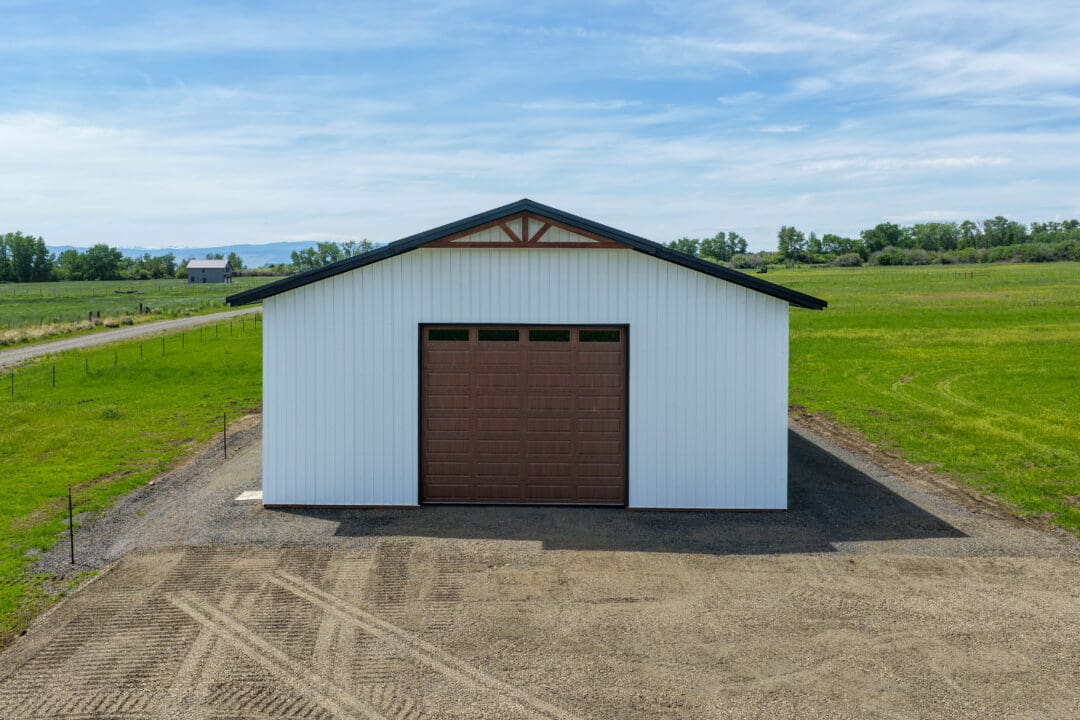

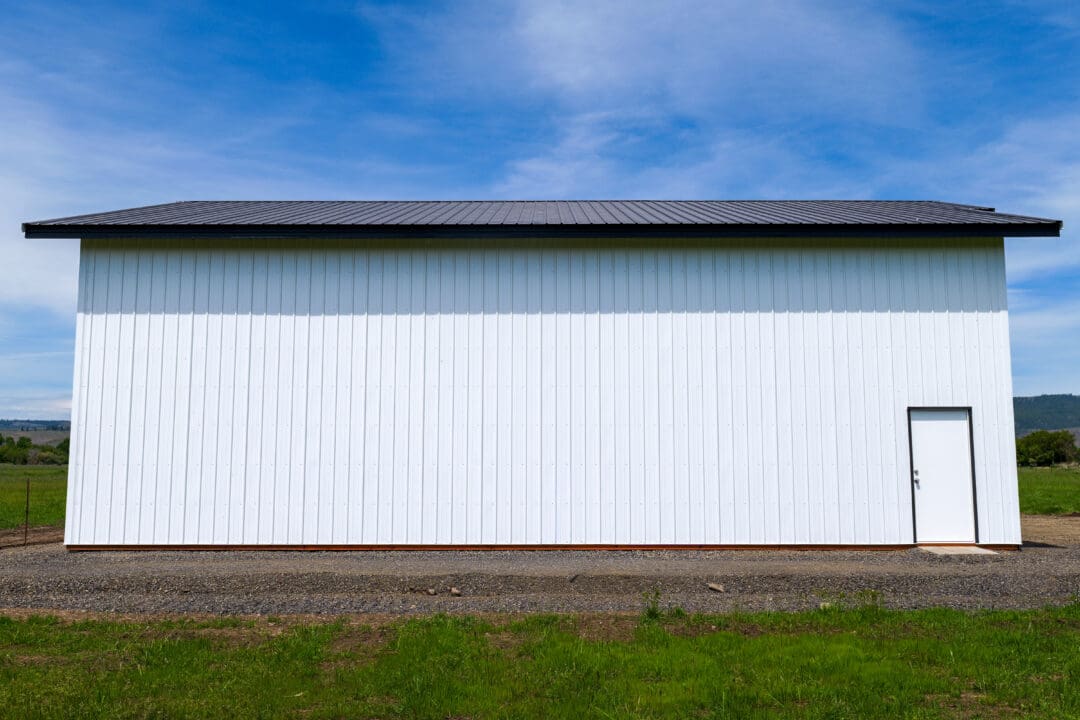

The 16’x14′ overhead door features a Ranch design in a wood grain finish with a long raised panel. Windows run across the top row, and the door includes a chain hoist. Along the sidewall, three steel-framed Dutch doors give direct access to each bay. Furthermore, a 3’x6’8″ metal jamb walk door in black serves as the main pedestrian entry.
Engineering a 40x48x16 Post-Frame Shop for Ellensburg, WA
Posts were set on Perma-Columns®, which keep all wood above grade and extend the life of the building. Steel Structures America engineered the structure for a 50 PSF roof snow load and 90 MPH wind shear. Also, the site carries Exposure C classification, appropriate for the open terrain around Ellensburg. Moreover, 2-inch vinyl-backed fiberglass insulation on the roof helps manage heat and condensation inside the working space.
Project Features
| Specification | Details |
|---|---|
| Dimensions | 40′ x 48′ x 16′ post-frame building, 1,920 sq. ft., gable roof, 4/12 roof pitch |
| Siding | 29-gauge Tuff Rib metal wall panels in Arctic White |
| Roofing | 29-gauge Tuff Rib metal roof panels in ULG Black, 4/12 pitch |
| Colors | Arctic White body and outside corners; ULG Black roof, trim, ridge cap, soffit, fascia, and door trim; wood grain finish overhead door |
| Overhead Doors | One 16′ x 14′ long raised overhead door in a wood grain finish with top-row long lite window inserts |
| Walk-In Doors | One 3′ x 6′8″ black metal jamb man door; three 4′ x 8′ Dutch doors |
| Windows | No separate wall windows; window inserts included in overhead door |
| Concrete | Perma-Column® foundation system with engineered post footings |
| Additional Features | Roof insulation, 24-inch overhangs with metal fascia and soffits, 6 x 6 decorative timber truss, 50 psf roof snow load, 115 mph ultimate wind design, Exposure C |
| Metal Provider | Roofing and siding provided by Metal America. |
