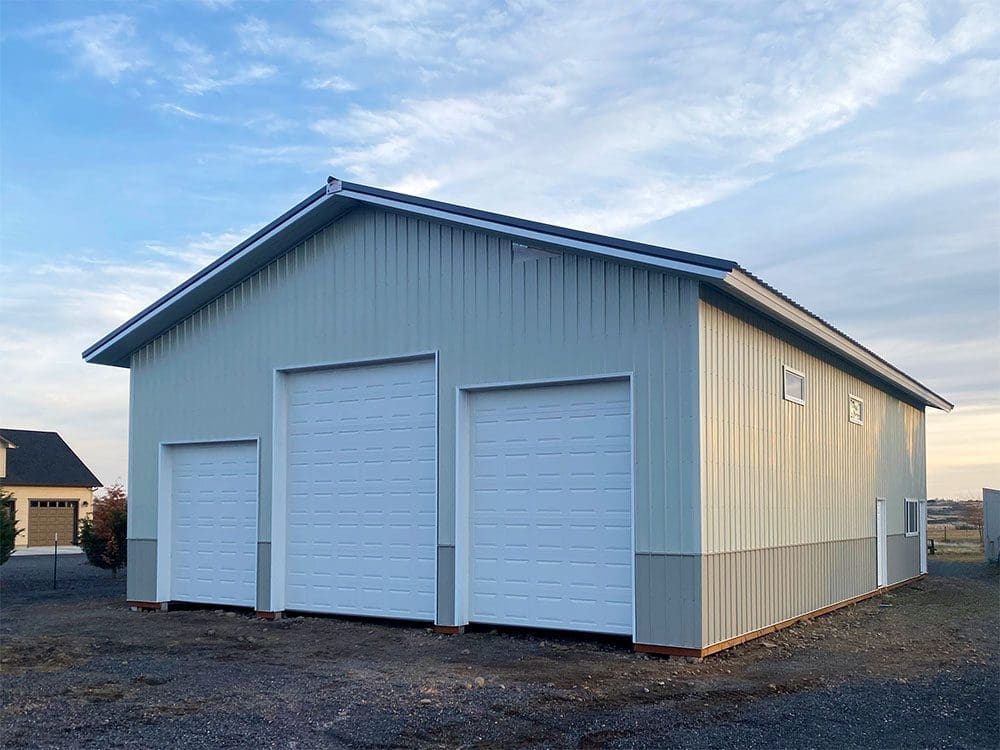

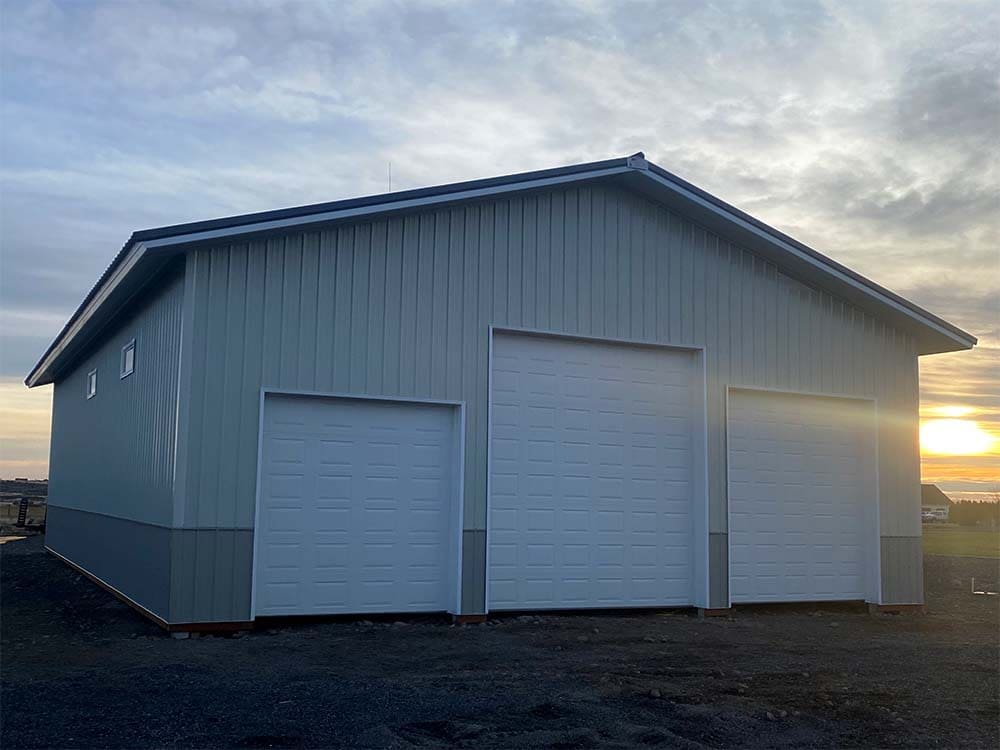

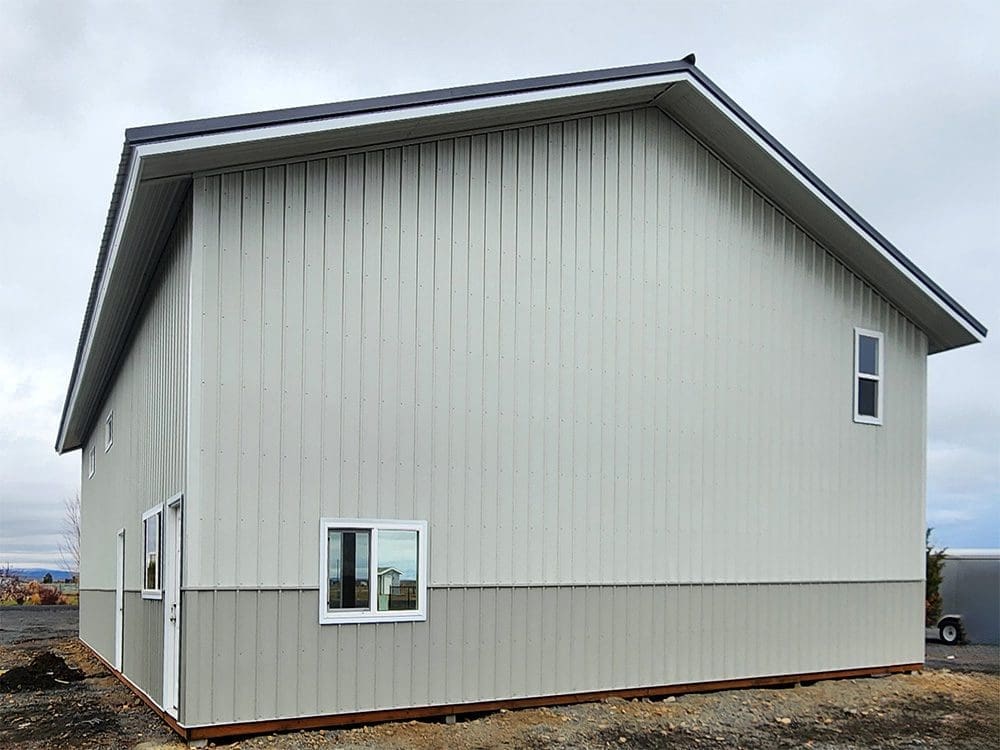

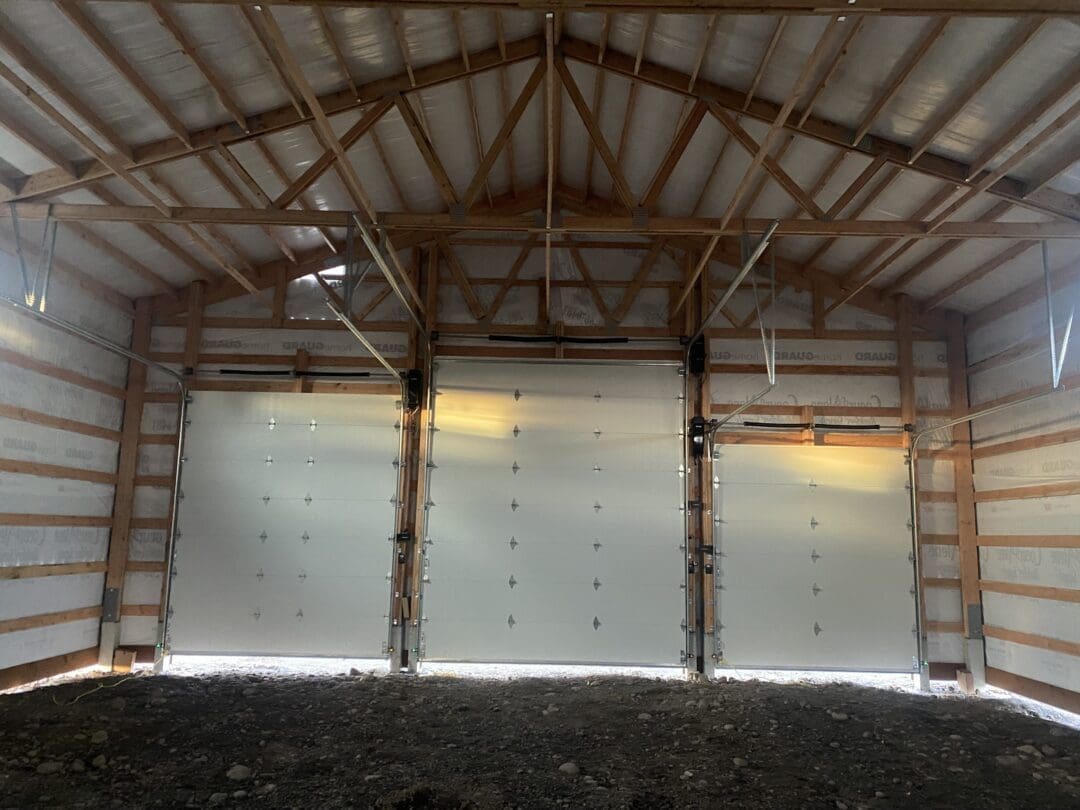

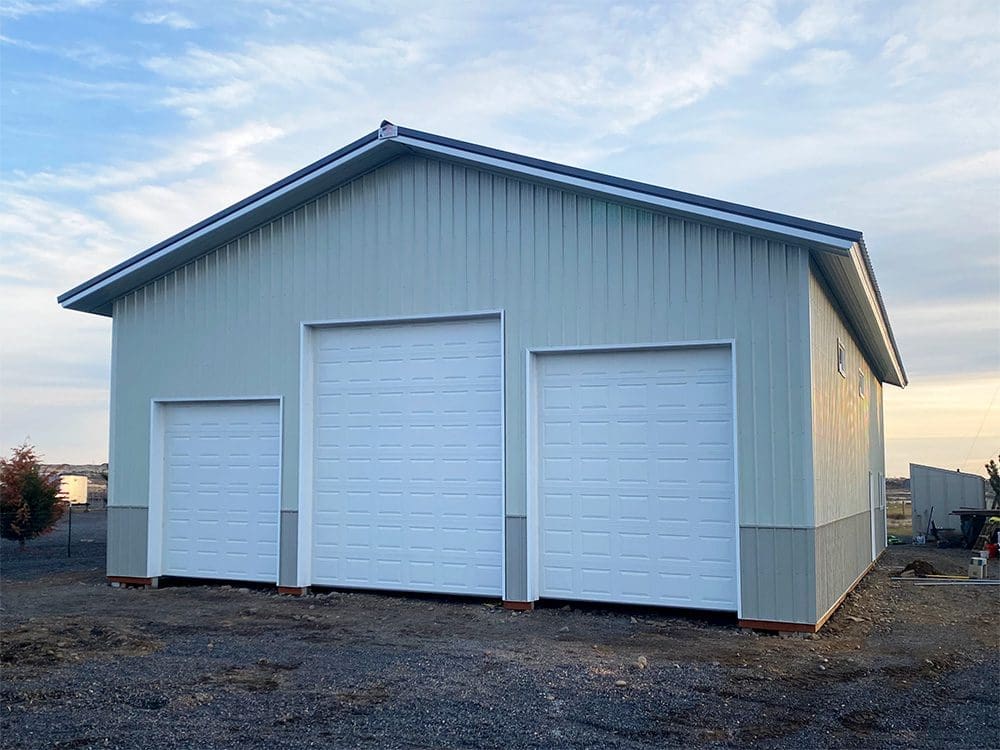

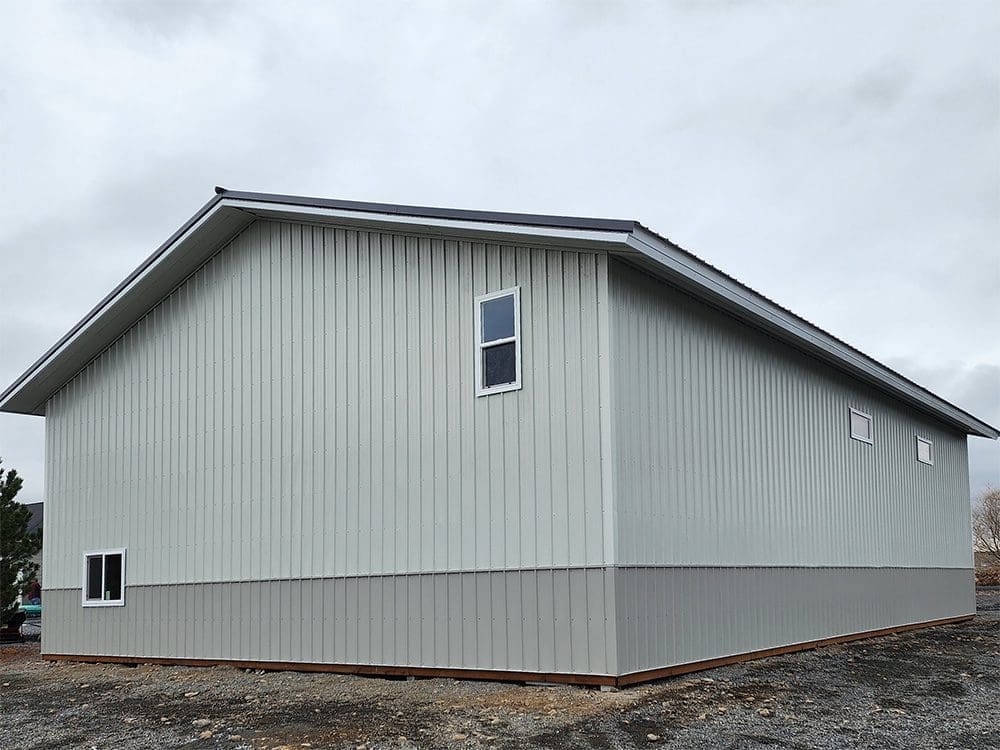

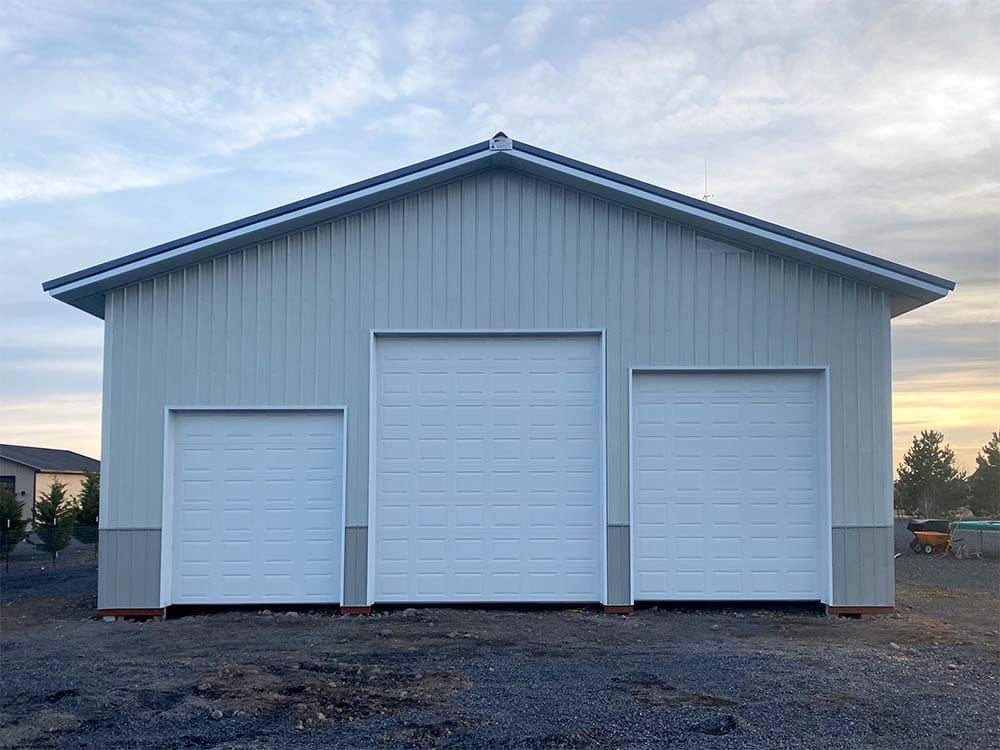

This 40×60 shop is finished with a Surf body siding, charcoal corners and roof, and white trim, featuring a 4′ ash-gray wainscot. This metal shop includes 3 overhead steel doors: (1) 9′ x 10′, (1) 10′ x 12′, and (1) 12′ x 14′.
Project Features
Specification |
Details |
|---|---|
| Dimensions | 40′ x 60′ x 16′ with 4/12 roof pitch |
| Siding | 29-gauge 3′ Rolled Rib panels |
| Roofing | 29-gauge 3′ Rolled Rib panels |
| Colors | Surf body, Charcoal roof/accents, White soffit, and Ash Gray wainscot |
| Overhead Doors | one 9′ x 10′, one 10′ x 12′ and one 12′ x 14′ insulated, raised panel overhead doors |
| Walk-In Doors | two 3′ x 6’8″ walk-in door |
| Windows | one 4′ x 3′, four 4′ x 18″, and one 6′ x 3′ tempered xox window; all low-E |
| Concrete | 40′ x 60′ x 6″ smooth finish slab with #4 rebar reinforcement |
| Additional Features | Perma-Column® foundation system |
Perma-Column® provided by https://permacolumnprecast.com/, the leading manufacturer in the Pacific Northwest.
Looking for a 40×60 shop that can be totally customized to your needs? Steel Structures America can design and build it for you. We specialize in fully custom post-frame buildings. Contact us today to learn more!
