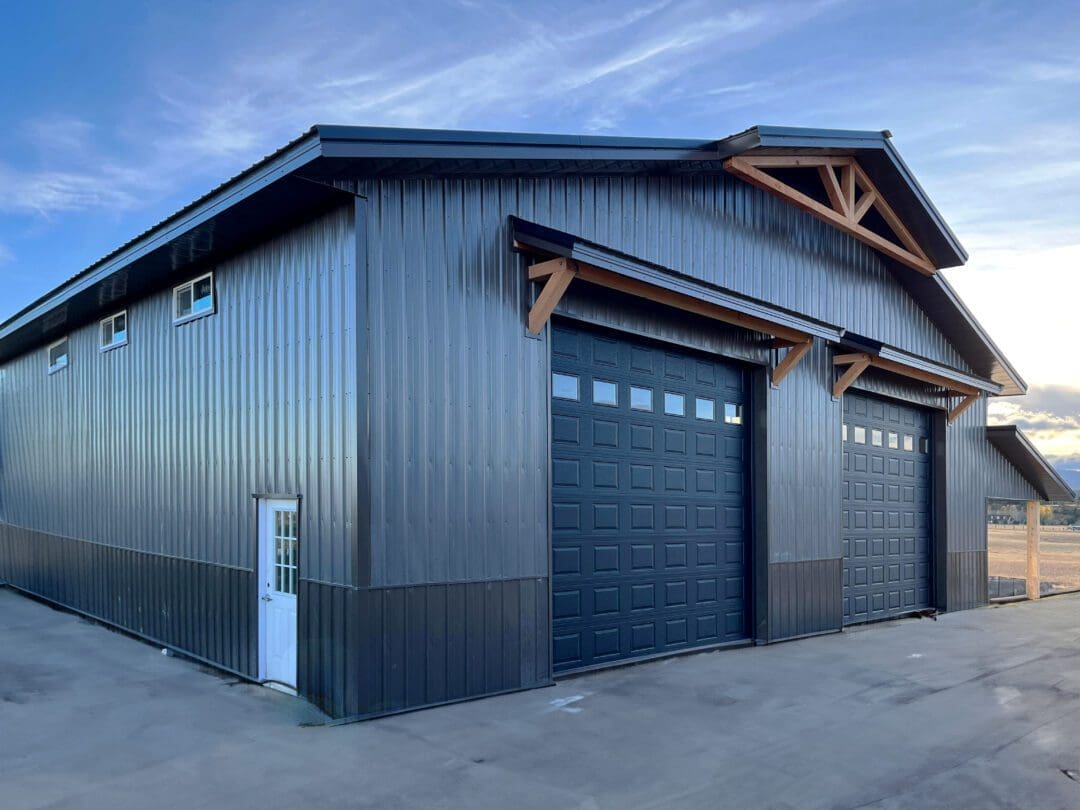

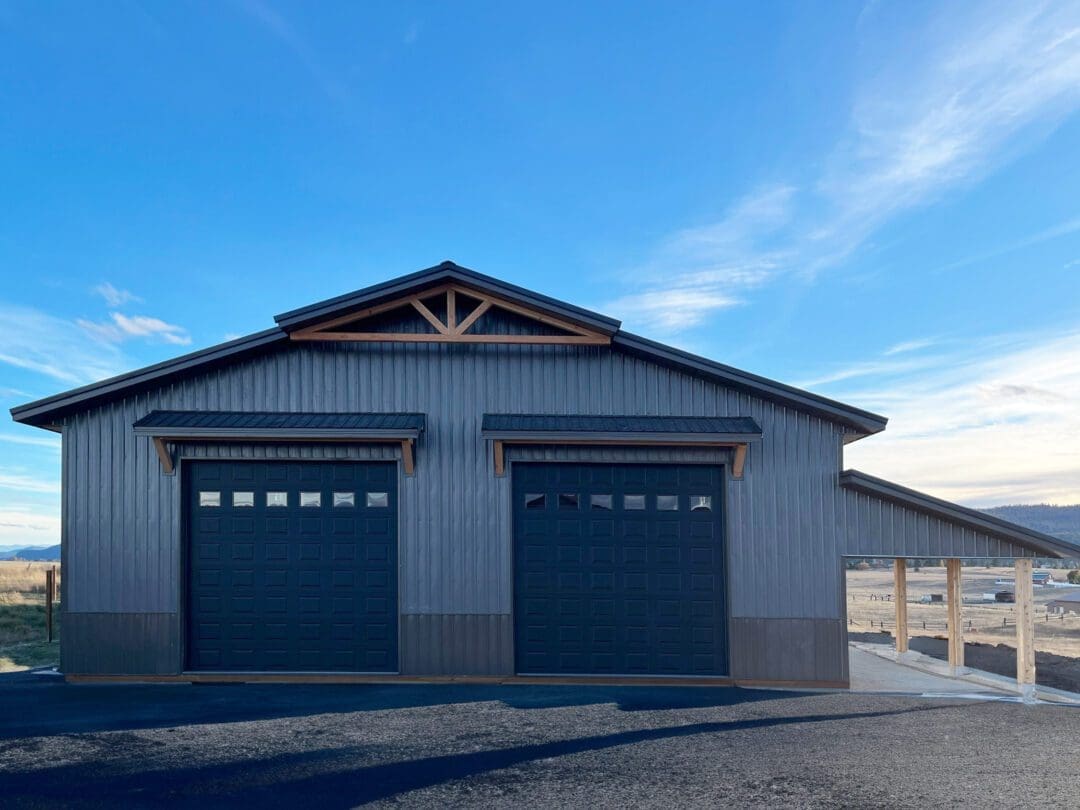

This beautiful 50′ x 80′ x 16′ shop is one of the many metal buildings our North Idaho & Montana team built in 2024. It features a small 12′ x 20′ x 14′ lean-to. This pole barn shop has one 14′ x 14′ overhead painted garage doors. This body is charcoal metal, while the roof, roof corners, door trim, soffits and 4′ wainscot are burnished slate from Metal America. The snow load for this build is 65lbs, making it perfect for Montana winters.
Project Features
- Main Building: 50′ x 80′ x 16′ with a 4/12 roof pitch
- Lean-Tos: 12′ x 20′ x 14′ open lean-to with cedar-wrapped posts
- Exterior:Â Charcoal siding with burnished slate accents
- Overhead Doors: two black 14′ x 14′ Therma Tech doors
- Walk-in Doors: three 3′ x 6’8″ Armorguard doors
- Windows: five 4′ x 3′ and twelve 4′ x 22″ double-pane vinyl windows
- Concrete: 12′ x 164′ in 4″ thickness/ 40′ x 50′ in 5″ thickness in smooth finish, with saw-cut joints and fibermesh reinforcement
- Special Features: Perma-Column® precast concrete foundation system, 4′ gable extension spanning 20′ with 6′ x 6′ timber trusses, 3′ overhangs over both garage doors with corbels and soffits
Perma-Column® provided by https://permacolumnprecast.com/, the leading manufacturer in the Pacific Northwest
