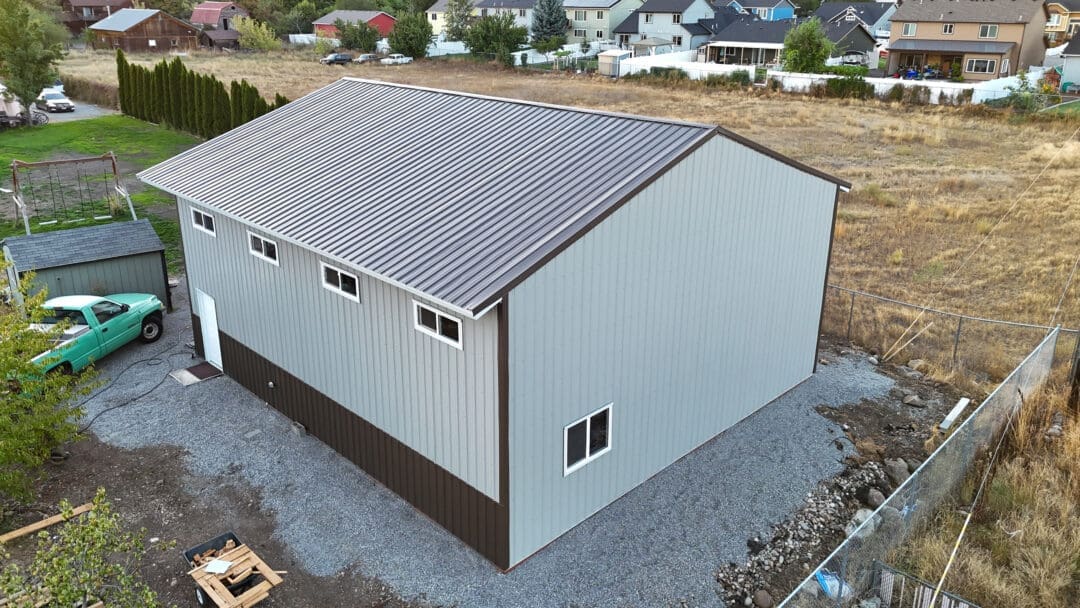

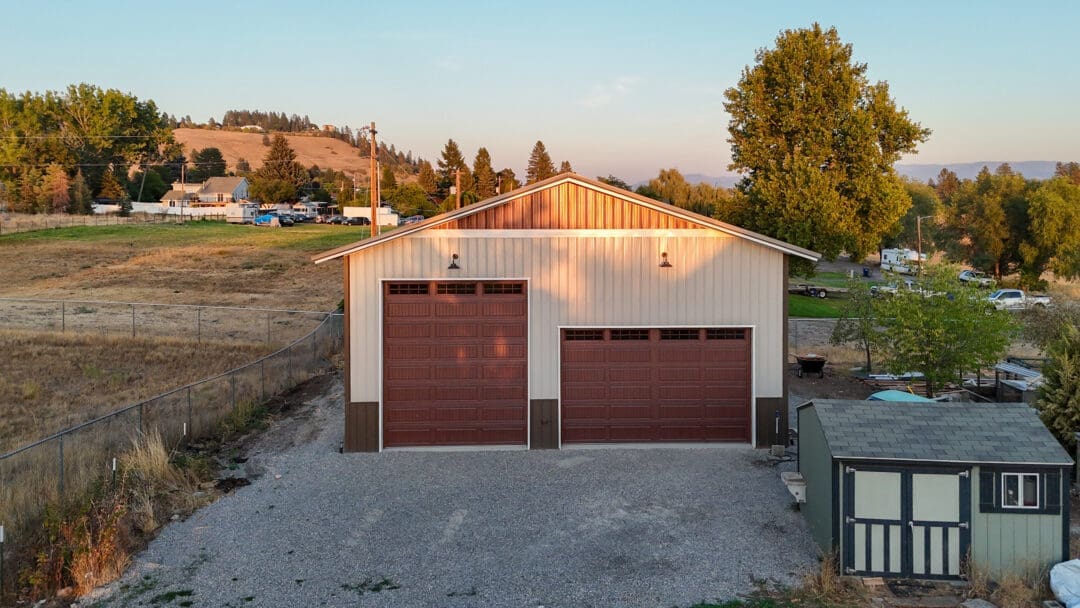

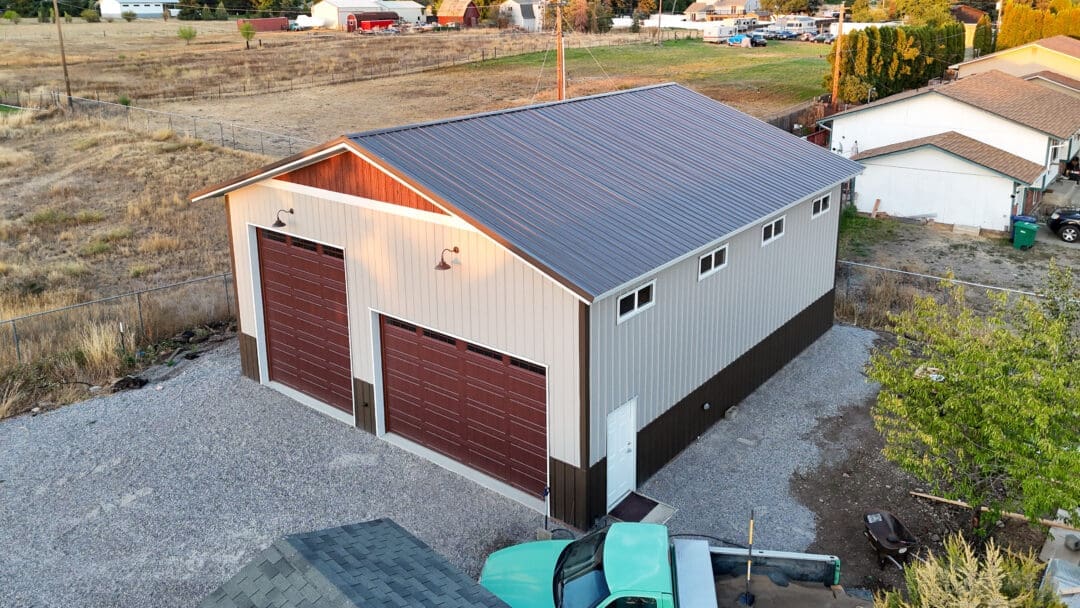

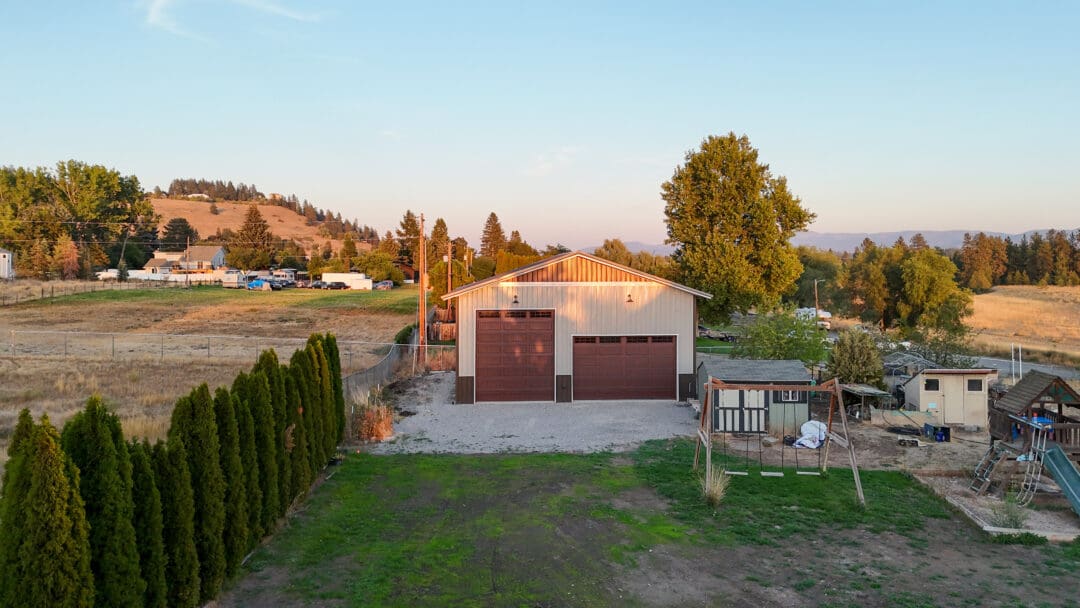

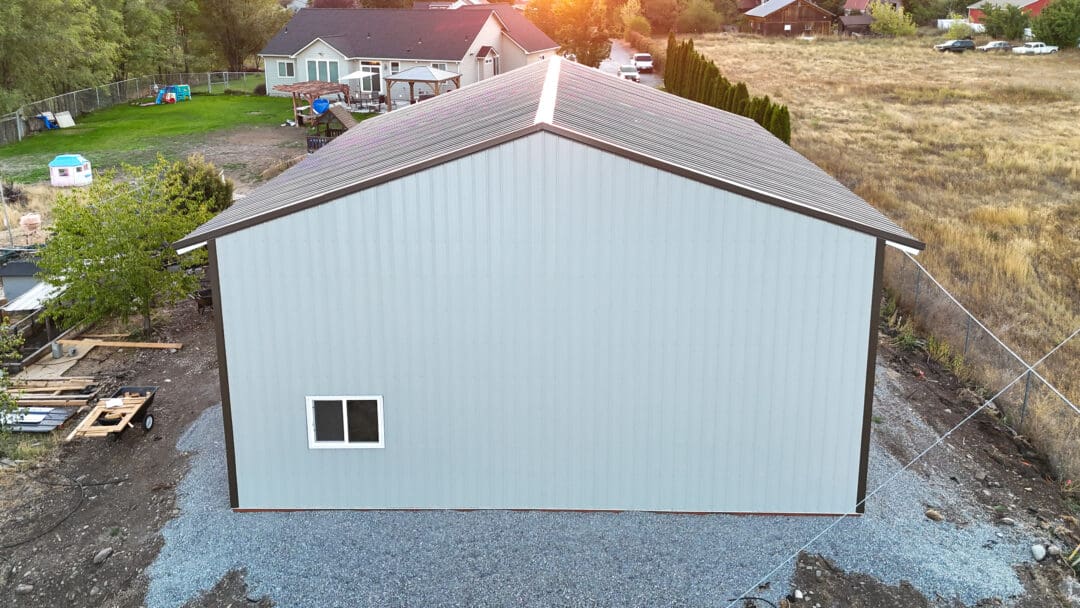

#14347 – 36 × 40 × 16 Residential Post-Frame Building in Spokane, WA

Steel Structures America built this 36′ × 40′ × 16′ residential post-frame building in Spokane, WA. This project combines a functional garage-style layout with a clean residential finish, making it ideal for storage, vehicles, or workshop use.

Design & Layout

The main structure measures 36′ × 40′ with a 16′ eave height and a 4/12 gable roof pitch. Its open layout allows for flexible use while maintaining a strong, modern appearance.

Exterior & Access

The exterior includes durable 29-gauge steel siding with contrasting trim, fascia, and soffits. A burnished slate wainscot wraps the front gable, adding protection and visual contrast.

Doors & Windows

• (1) 12′ × 14′ insulated overhead door
• (1) 16′ × 10′ insulated overhead door
• (1) 3′ × 6′8″ ArmorGuard walk-in steel door with lockset and deadbolt
• (1) 4′ × 3′ vinyl window
• (4) 4′ × 18.5″ fixed vinyl windows

The overhead doors feature cottage-style panels with decorative inserts, creating a custom look that complements the residential design.

Foundation & Structure

Posts were set on Perma-Columns®, which keep all wood above grade and extend the life of the building. A smooth 36′ × 40′ concrete slab reinforced with fibermesh and saw cuts provides a strong foundation.

Roofing & Siding

The roof and siding were supplied by Metal America, SSA’s sister company. Locally manufactured steel ensures long-lasting durability and weather protection.

Project Features

• Main Building: 36′ × 40′ × 16′ with 4/12 gable roof
• Overhead Doors: 12′ × 14′ and 16′ × 10′ insulated steel
• Walk-In Door: 3′ × 6′8″ ArmorGuard steel
• Windows: (1) 4′ × 3′ and (4) 4′ × 18.5″ fixed
• Concrete: 36′ × 40′ slab, smooth finish, fibermesh reinforced
• Foundation: Posts set on Perma-Columns®
• Exterior: Steel siding with front wainscot and gable break

This Spokane project shows how SSA creates custom post-frame buildings that balance functionality with a residential look.

Contact us today to get a quote for your own custom shop, garage, or post-frame building in WA, ID, MT, WY, OR, or CO.
