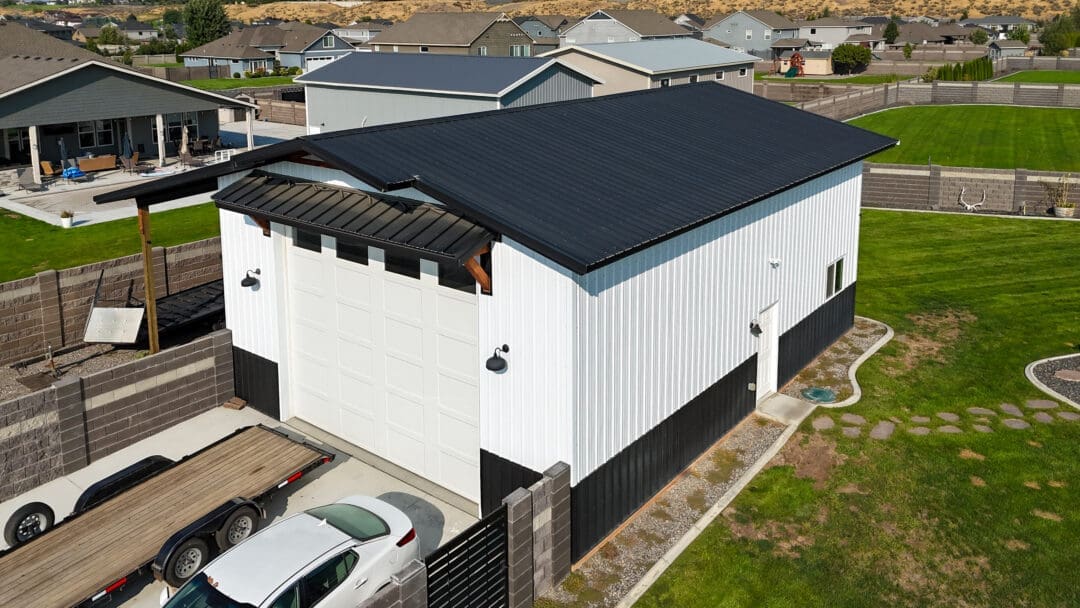

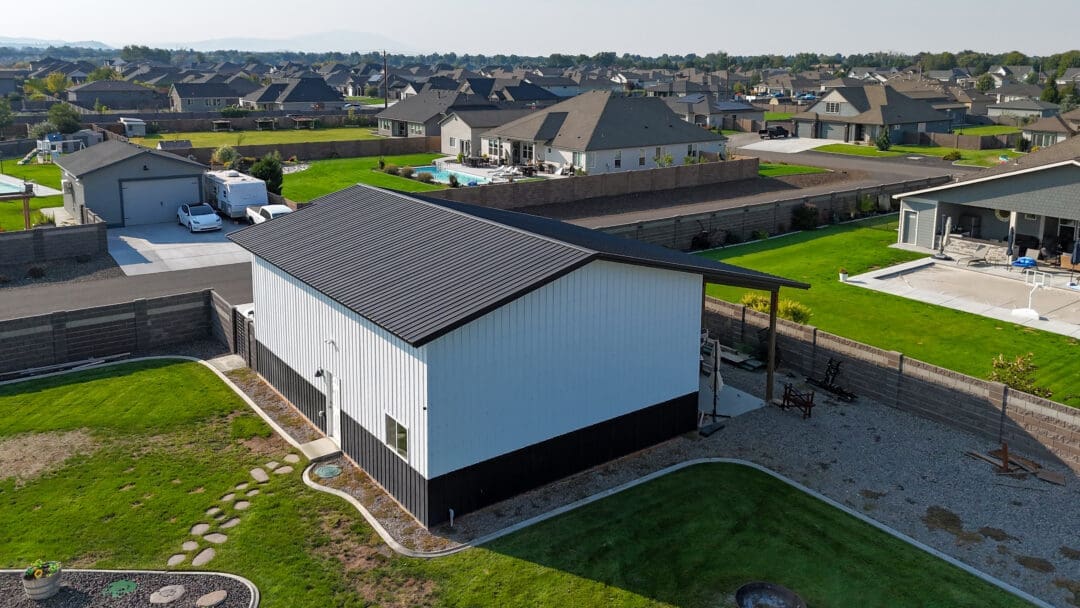

#11415 – 30x40x16 Post-Frame Shop with Lean-To in Pasco, WA

Steel Structures America built this 30′ × 40′ × 16′ post-frame shop in Pasco, WA. With an attached lean-to, large overhead doors, and detailed gable accents, this project balances storage, utility, and curb appeal.

Design & Layout

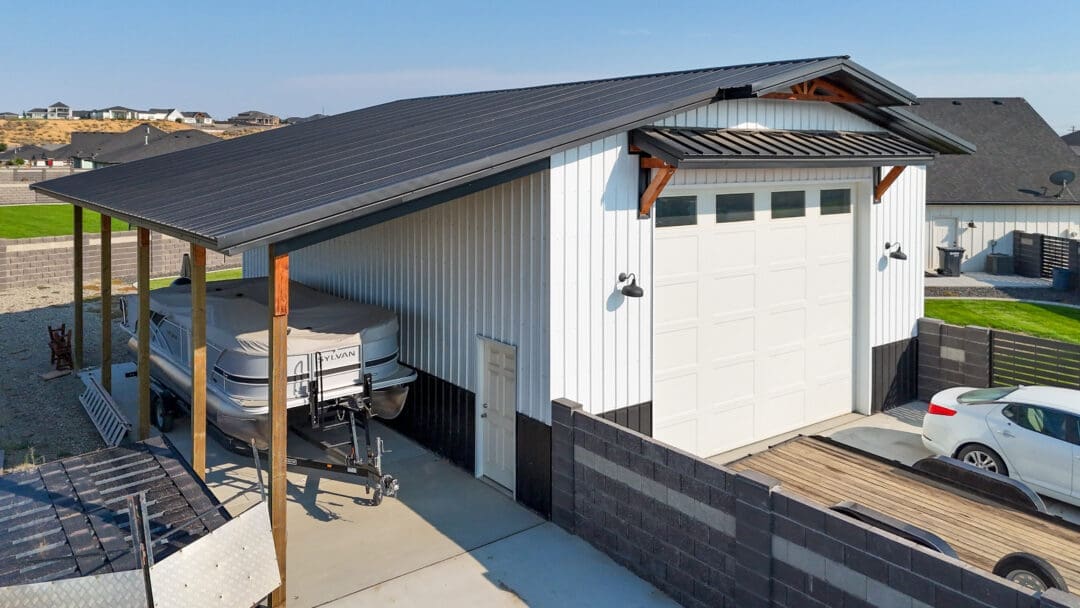

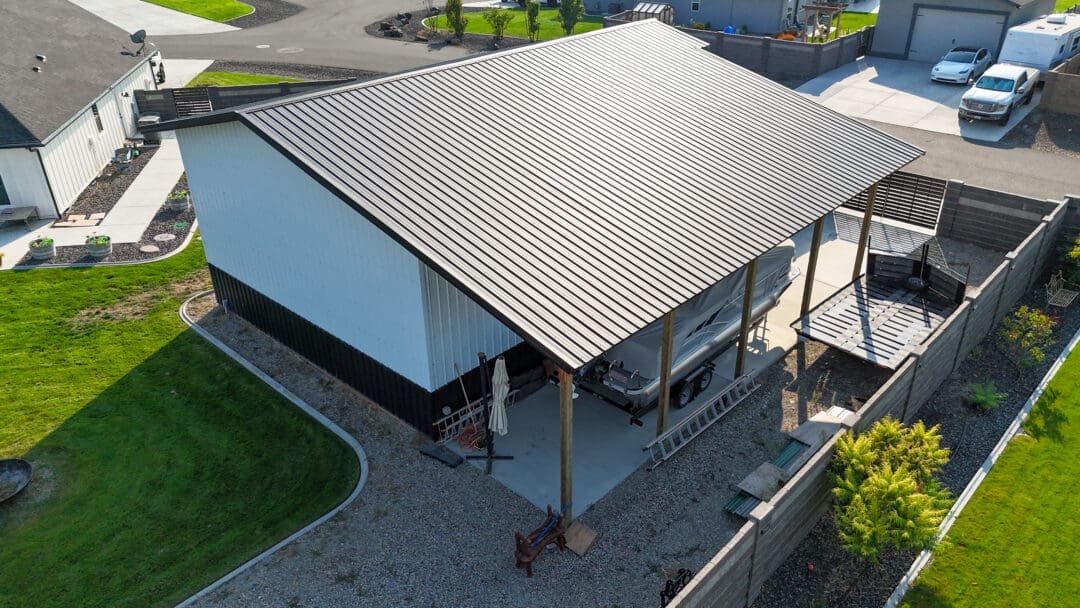

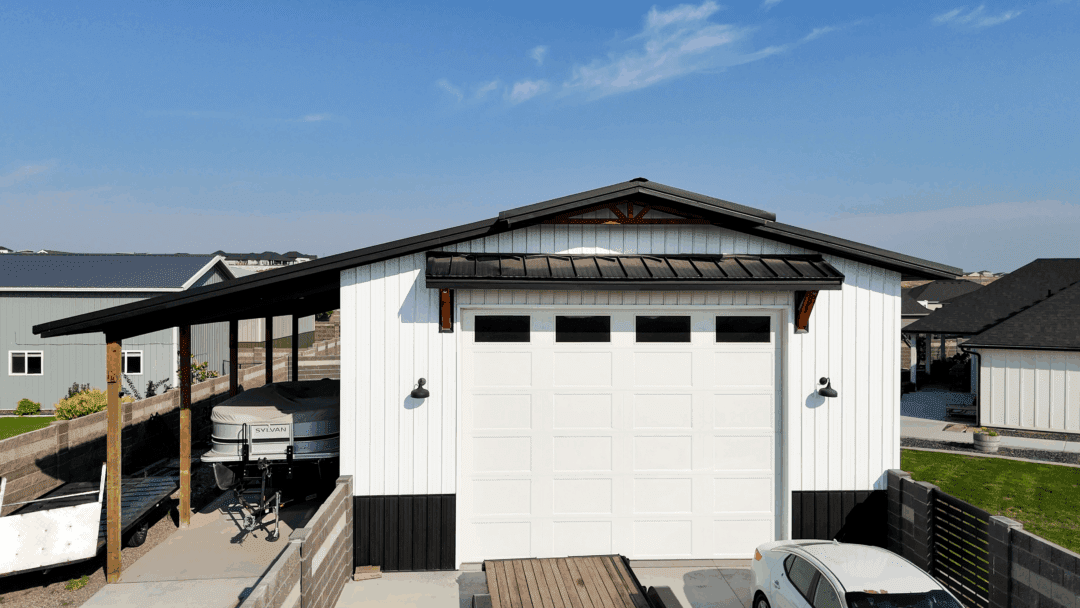

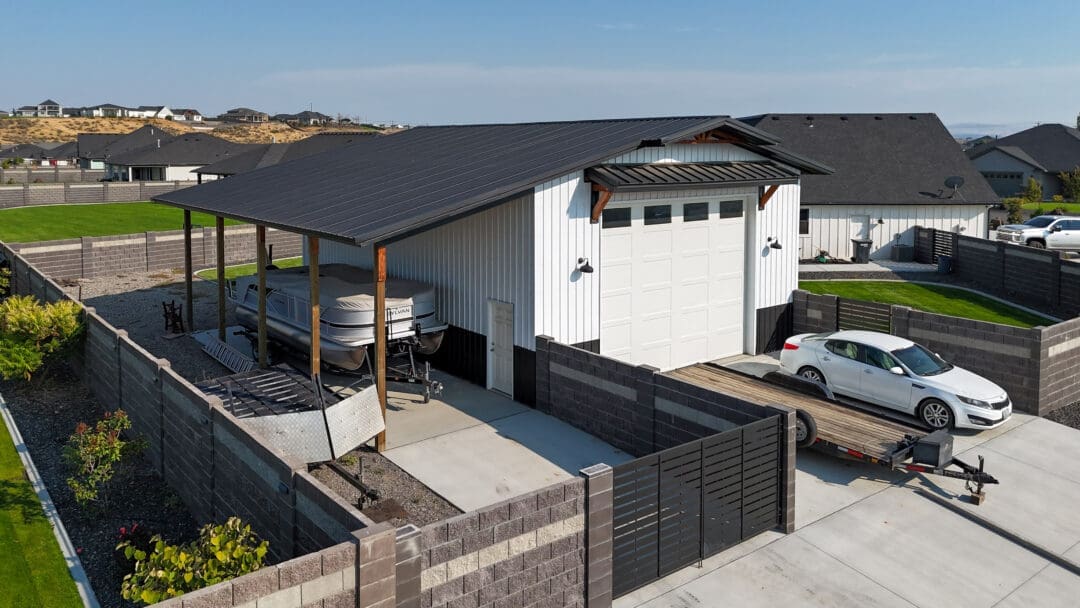

The main structure measures 30′ × 40′ with a 16′ eave height. An attached 12′ × 40′ lean-to at 13′ eave height extends the footprint to 42′ × 40′ overall, offering both enclosed and covered space. A 15′ wide gable overhang extension and a 12′ wide exposed truss detail on the front add distinctive character.

Exterior & Access

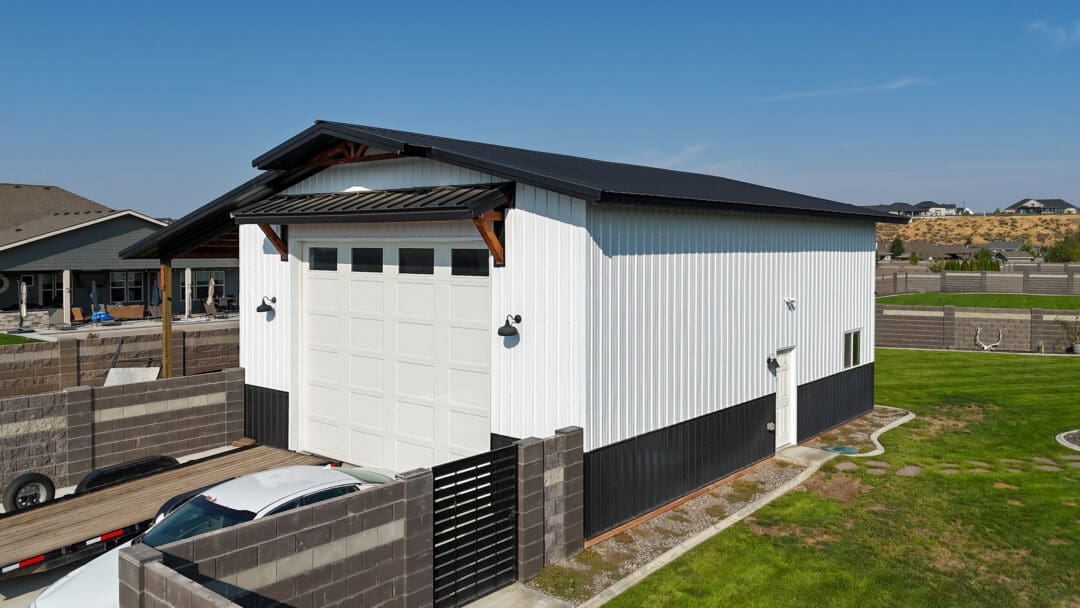

SSA finished the exterior with 29-gauge steel siding, accented by a 48″ wainscot around the full perimeter. The design also includes black and white steel for contrast, fully enclosed 24″ overhangs, and a 26′ eyebrow roof extension.

For access, the shop includes:

• 18′ × 14′ insulated overhead door
• Steel walk-in door with deadbolt

Project Features

• Main Building: 30′ × 40′ × 16′ with 3/12 roof pitch
• Lean-To: 12′ × 40′ enclosed, 13′ eave height
• Concrete Slab: 42′ × 40′ footprint, 6″ thick, fibermesh + rebar
• Exterior: 29-gauge steel siding with full wainscot and gable extensions

Built for Strength & Style

This Pasco project showcases how SSA creates post-frame buildings with both function and design appeal. With its lean-to, gable features, and versatile access, the shop is built to last while standing out visually.
