#13509 – 40×48×14 Shop with 2′ Overhangs in Spokane, WA

Built in Spokane, WA, this 40×48×14 post-frame shop uses a standard gable (4/12) roof with 2′ enclosed overhangs. The shell includes vinyl-backed fiberglass insulation at the roof and walls and two insulated 12′×12′ overhead doors, plus walk-in doors and double-pane windows. Exterior finishes feature a Gray body with Charcoal wainscot and soffits.

Project features

• 40′ × 48′ × 14′ post-frame shell
• Standard gable roof, 4/12 pitch with 2′ fully enclosed eave overhangs/soffits Steel Structures America
• 29-ga steel roof & wall panels
• Doors: (2) 12′ × 12′ insulated raised-panel overhead doors; (2) 3′ × 6′8″ walk-in doors
• Concrete (interior): 40′ × 48′ × 4″ slab, fibermesh, saw-cut control joints; smooth finish

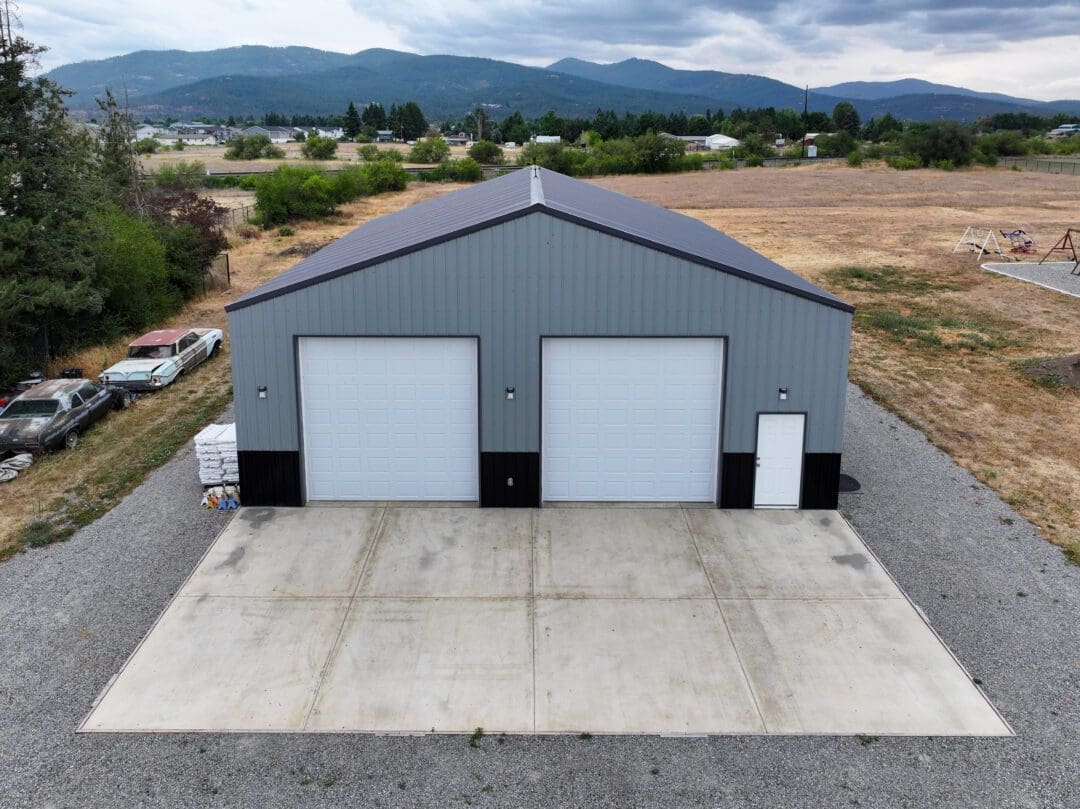

• Concrete (exterior): 40′ × 20′ × 4″ pad
• Trim/finish: Gray body with Charcoal wainscot & soffits; overhead doors intentionally contrasting
