#14124 – 48×30×14 Residential Post-Frame Building in Medical Lake, WA
#14124 – 48×30×14 Residential Post-Frame Building in Medical Lake, WA
Design & Purpose
This residential post-frame building in Medical Lake, WA was designed for year-round function, equipment access, and dependable protection. The customer wanted a versatile layout with wide access points and strong structural performance.
Layout & Structure

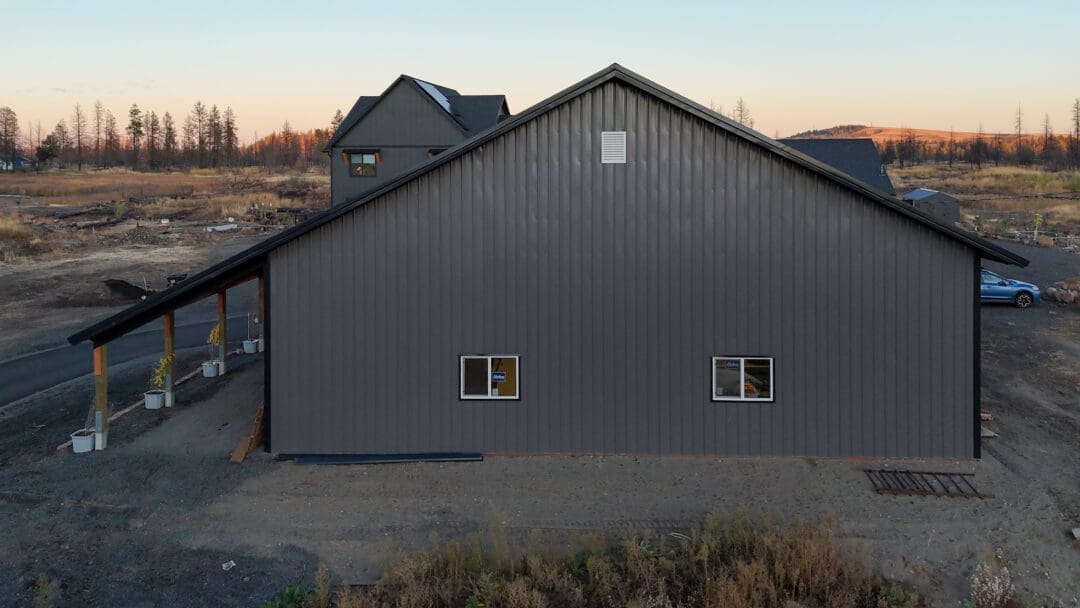

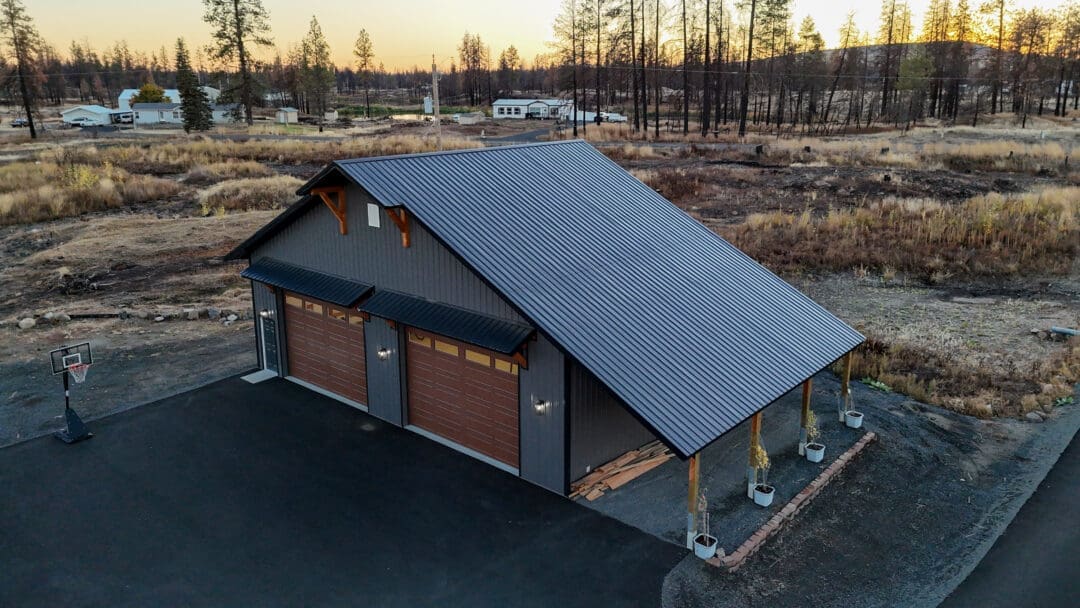

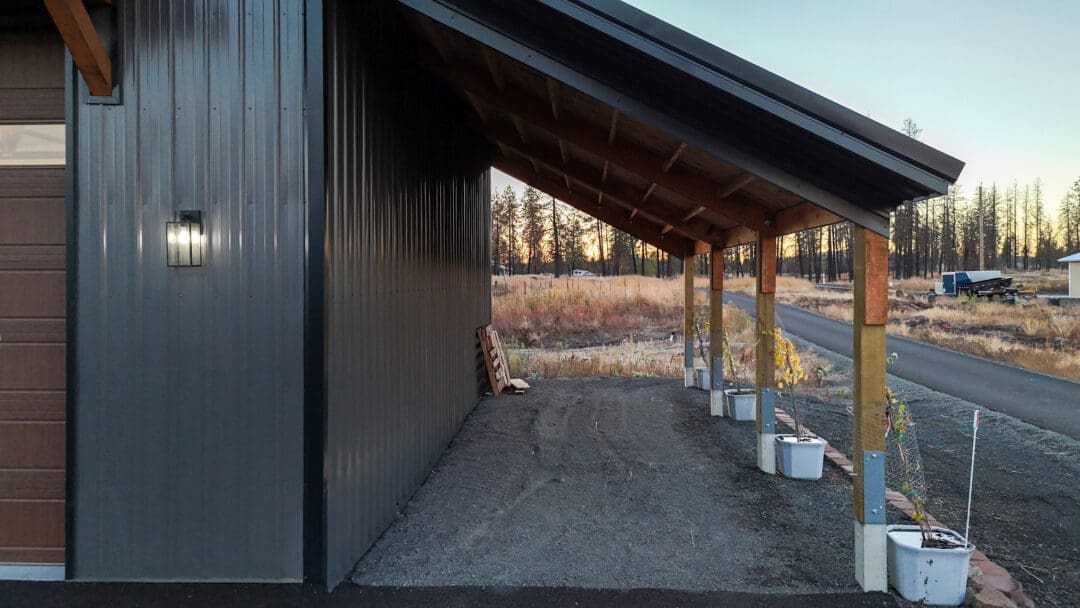

The main building measures 48 × 30 with a 14 foot eave height and a 6/12 roof pitch. This creates efficient snow shedding and a comfortable interior volume. The 12 × 30 lean-to, also built with a 6/12 pitch, extends along one side at an 8 foot eave height to support outdoor storage and daily use. A 10 × 4 foot gable extension and two 18 foot canopy covers add weather protection at key entry points. Decorative corbels and added posts around the man door elevate both strength and appearance.
Exterior & Features

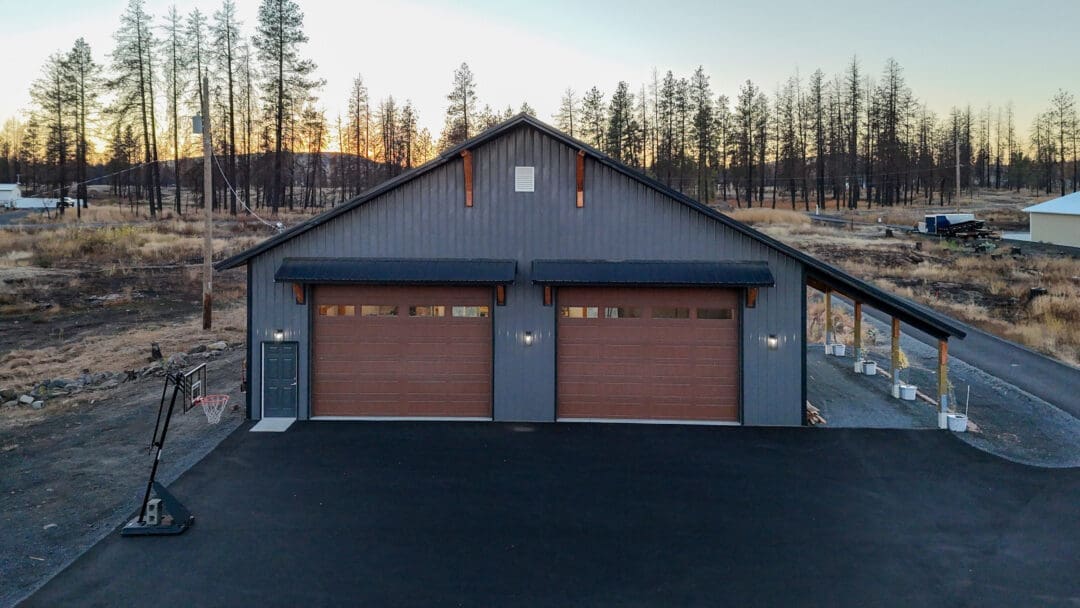

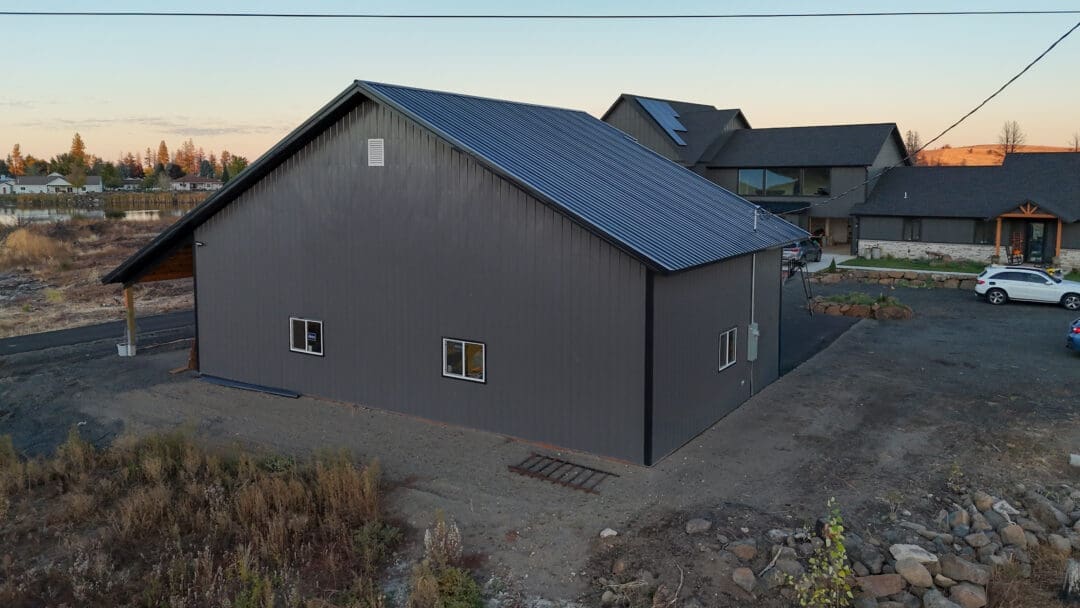

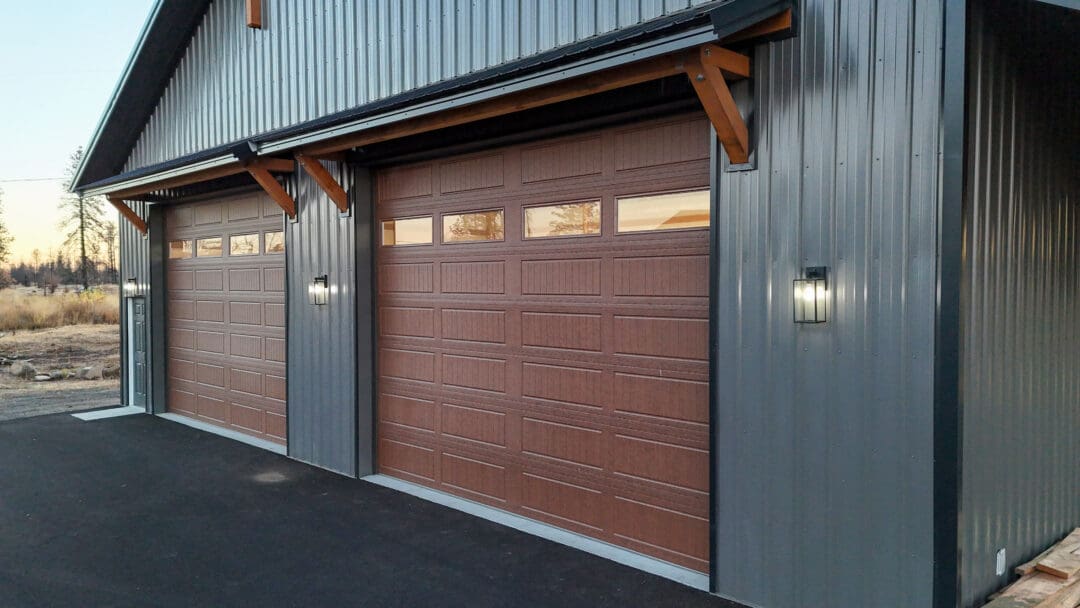

The exterior uses 29 gauge steel siding in Charcoal with Black fascia, trim, corners, and soffits. The Black metal roof ties the entire color scheme together for a bold, cohesive look. Two insulated 16 × 12 overhead doors feature a medium wood grain cottage panel design with a single row of windows. A single walk-in door offers secure entry, and three 4 × 3 XO vinyl windows bring natural light throughout the space.
Foundation & Durability
A 48 × 30 concrete slab, poured at 4 inches thick, forms a strong and durable base. The slab includes fibermesh reinforcement, saw cuts, a gravel base, and a smooth finish.
Project Features
Specification |
Details |
|---|---|
| Dimensions | 48 × 30 × 14 main building, 6/12 pitch; 12 × 30 × 8 lean-to, 6/12 pitch; 10 × 4 gable extension; (2) 18 ft overhead door canopies |
| Siding | 29 gauge steel siding |
| Roofing | Black metal roofing, 6/12 pitch, bottom-loaded trusses |
| Colors | Charcoal body; Black trim, fascia, soffit, and corners; Black roof |
| Overhead Doors | (2) 16 × 12 insulated cottage-style steel doors with medium wood grain finish, 1 window row |
| Walk-In Doors | (1) 3 × 6’8 Armorguard door with lockset and deadbolt; posts at both sides of door |
| Windows | (3) 4 × 3 XO vinyl windows |
| Concrete | 48 × 30 slab, 4 inch thickness, fibermesh reinforcement, saw cuts, gravel base, smooth finish |
| Additional Features | Gable vents, 2 ft overhangs, gable extensions, overhead door canopies, hem fir top posts, roof sheathing and insulation in lean-to |
| Metal Provider | Roofing and siding provided by Metal America. |
Perma-Column® foundation system
Posts were set on Perma-Columns®, the leading manufacturer in the Pacific Northwest, which keep all wood above grade and extend the life of the building.
Contact us today to start planning your own post-frame building in WA, ID, MT, WY, OR, or CO.
